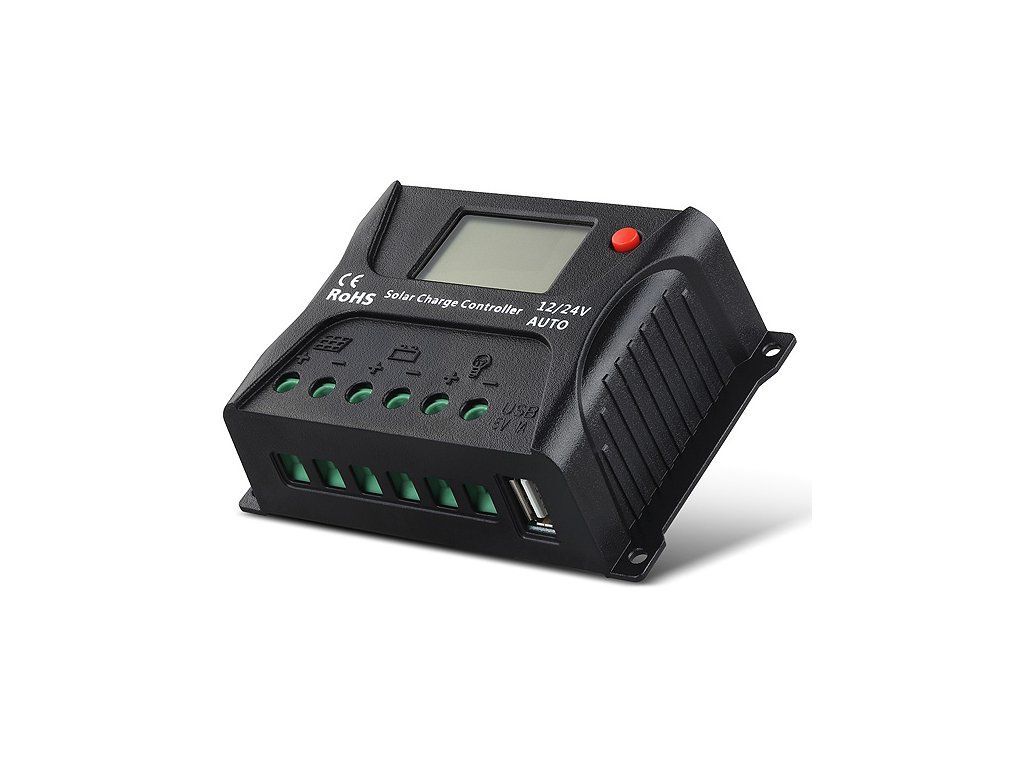

Solar controller SRNE PWM SR-HP2410 - 10A

Product detailed description

The PWM controller controls the charging and discharging of the battery - it adjusts the voltage from the solar panel so that it is usable for charging the battery and operating the 12V/24V load. This controller is designed for the construction of "island" systems (off-grid), i.e. for places without electricity, such as cottages, caravans, gardens, etc. To build a solar island system you need a solar panel, a solar controller and a battery. In case you do not use 12 V appliances, you also need a voltage converter. Product features: General: Display to show the current status of the parameters Easy one-button operation Allows operation of capacitive loads Modes of operation: The controller allows the load to be powered in several modes: Mode 0 - if there is no sunlight on the solar panel (it is night), the controller will run the load from the battery. When the panel is illuminated, the load is switched off and charging starts. Usage: e.g. during the day the battery is charged and at night the camera and lighting are operated from the battery.... Mode 1 to 14 - similar to mode 0, but the load switches off in 1 to 14 hours Mode 15 - start and stop the load output with a button Mode 16 - debug mode - in light the load is disconnected, in darkness it is connected Mode 17 - normal operation - the voltage at the load output is constant Protection: The controller is equipped with a variety of protections to ensure safe and reliable operation PV panel input overload protection (voltage and current) Battery and PV panel overvoltage protection Short circuit protection on PV panel input and load output Output overload protection Thermal protection, surge protection - lightning protection Night reverse connection protection - battery discharge to PV panel Electrical parameters: System voltage - battery: 12/24V (self-detection) Maximum PV panel voltage: 55V Rated current: 10A USB output 5V/1A
