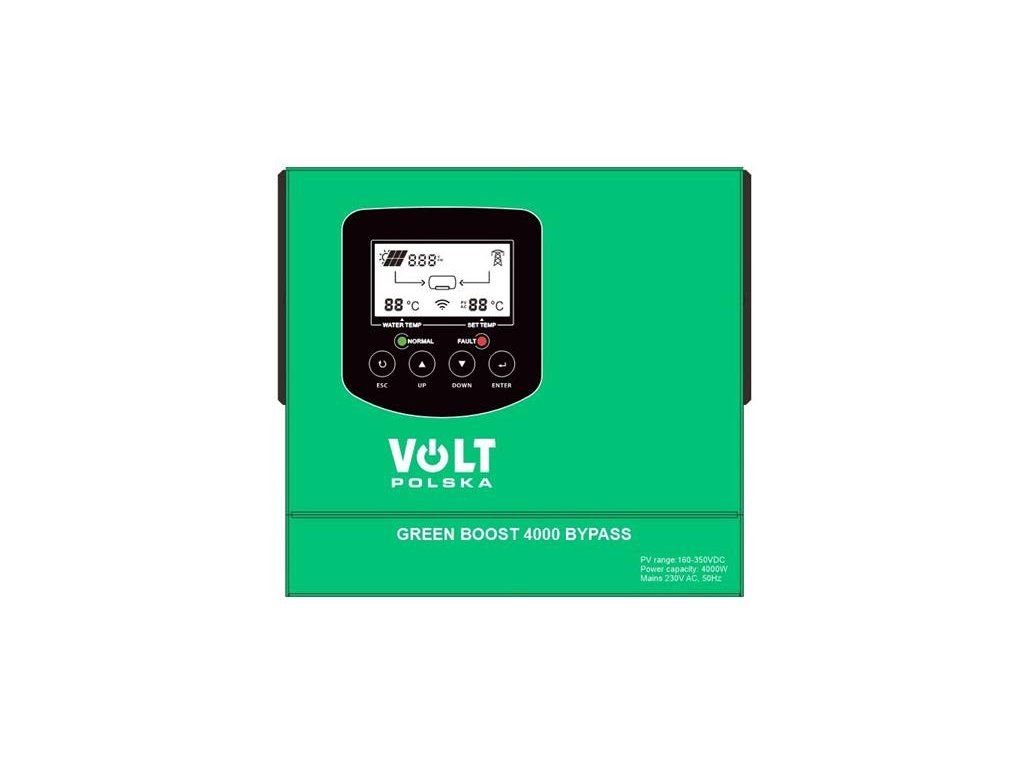

Solar controller VOLT Green Boost 4000 BYPASS

Product detailed description

Solar controller GREEN BOOST 4000 BYPASS is used to power heating devices from PV solar panels and the power grid.

How is the GREEN BOOST 4000 BYPASS solar controller different?
Multifunctionality (BYPASS) - the controller can be connected to both solar panels and the mains.
The panels should be connected in series with a total voltage of up to 350V. The maximum input current of PV is 20A.

What devices are powered by the GREEN BOOST 4000 BYPASS solar controller?

Electric boilers
Radiators
Electric heaters
Electric mats
Underfloor heating

Technical parameters:

Maximum power: 4000W
Output voltage range: 180-260VAC/50Hz
Allowable voltage range from panels: 160VDC-350VDC
Allowable panel voltage range (MPPT): 120VDC-340VDC
Maximum DC current from panels: 20A
Solar panel connection: series
Input socket: 2 pcs
Working mode: MPPT/STABLE
View: LEAD
Overload protection: yes
Short-circuit protection: yes
Overheat protection: yes - 100±10℃
Cooling: active
Warning: audible and visual signals
Overheating protection: yes / 100±10℃
Operating temperature: -25 to +55 °C
Storage temperature: -20 to +55 °C
Dimensions: 195 x 183 x 100 mm
Weight: 2,4 kg
