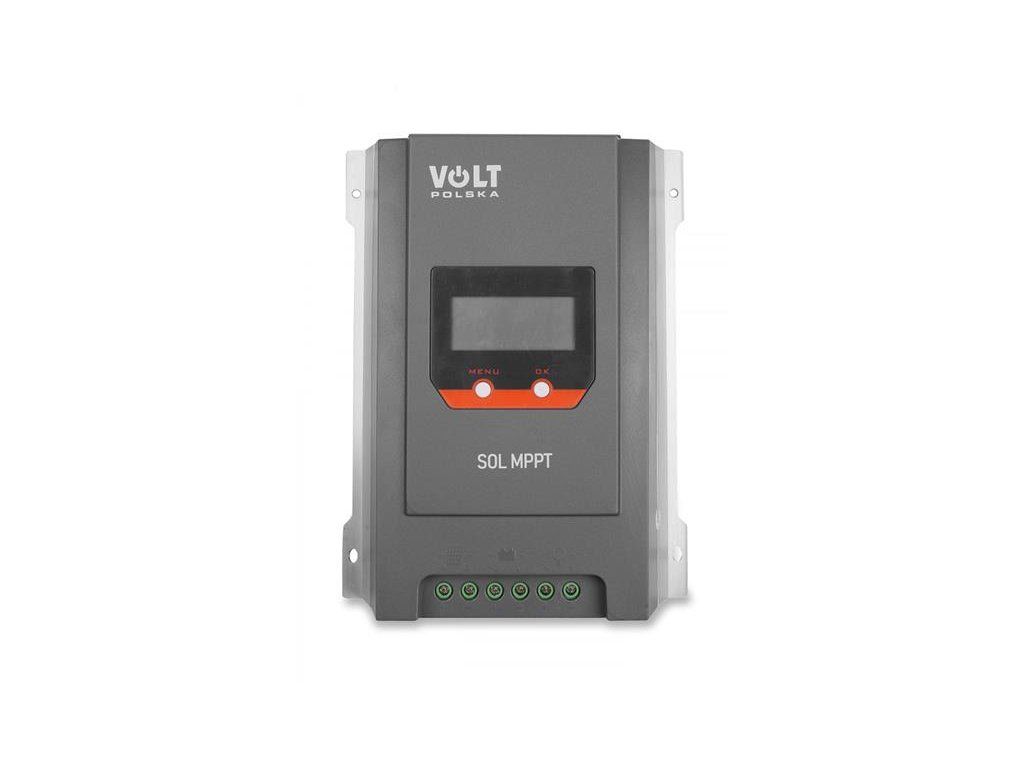

Solar controller VOLT Sol 12/24V MPPT 30A Bluetooth

Product detailed description

The VOLT Sol 12/24V MPPT 30A Bluetooth solar controller is designed to charge batteries from a connected set of solar panels. This modern and multifunctional device performs charging based on the latest and most efficient MPPT charging technology. By optimizing the charging process, the controller effectively extends battery life over standard PWM controllers. The SOL MPPT 30A model is equipped with a wireless communication function that allows you to remotely control and view the operating parameters of the controller.

Features:

- Modern MPPT technology
- Conversion/tracking efficiency > 99.9%
- Easy-to-read LCD display showing the most important operating parameters
- Automatic voltage detection of connected 12V/24V battery
- For use with GEL, AGM, lithium and liquid electrolyte batteries
- Temperature sensor with automatic temperature compensation (if the temperature exceeds the set value, the charging current is reduced to lower the temperature)
- Four-phase charging: MPPT, BOOST, Equalization, Float
- Multiple connected load control modes: on, dusk to dawn, night and manual
- Fully automatic protection (short circuit, temperature, overload)
- Maximum charging current: 30A
- Battery voltage: 12V/24V
- Maximum panel voltage: 100V
- Self power consumption: 7mA
- For batteries: AGM, GEL
- MPPT charging voltage: <14.5/29.0 V (at 25 °C)
- BOOST voltage: 14.5/29.0 V (at 25 °C)
- Balancing voltage: 14.8/29.6 (at 25 °C)
- Floating voltage: 13.7/27.45 (at 25 °C)
- Low voltage disconnection: 10.8~11.8V/21.6~23.6V SOC1~5
- Reconnection voltage: 11.6~12.8V/23.2~25.6V
- Overload protection: 15.5/31.0V
- Temperature compression: -4.17 mV/K per cell (Boost, Equalization) -3.33 mV/K per cell (Float)
- Twilight/dawn detection voltage: 5/10V
- Dimensions: 189x255x69mm
- Weight: 2 kg
- Coverage: IP32
- Setting all LiFePO4 battery parameters is only available from the Solarlife Android/iOS smartphone app
