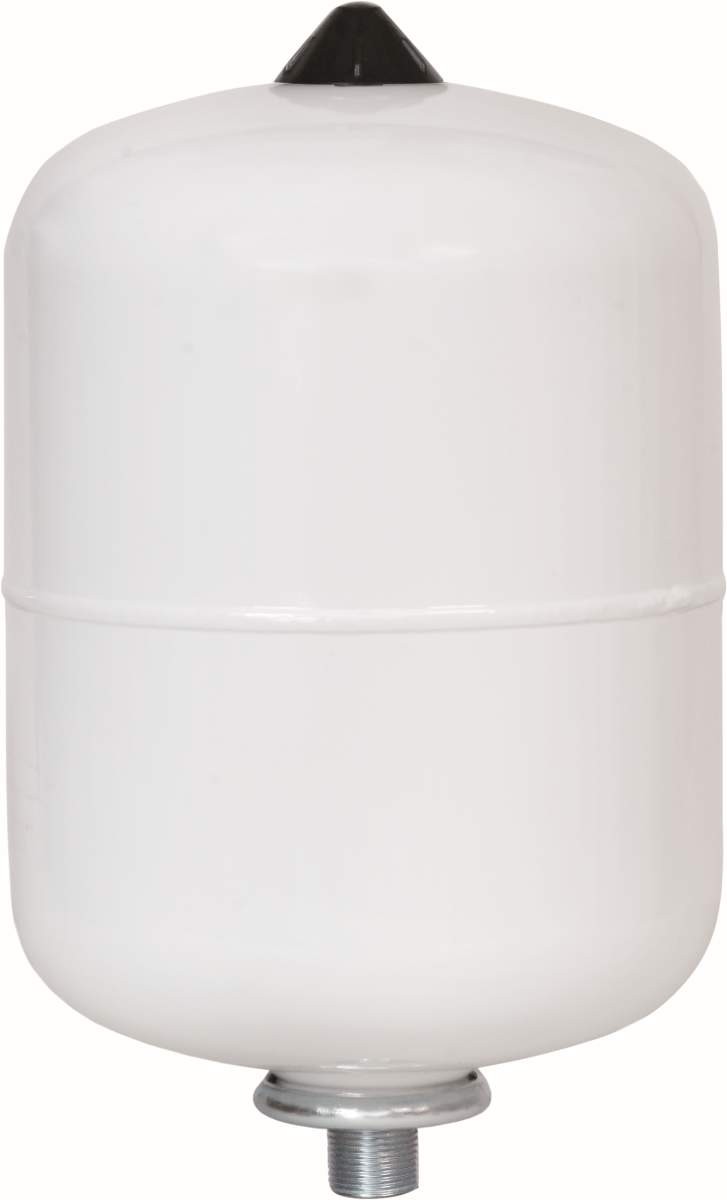

Solar expansion vessel IBAIONDO 35L
Code: NS.35.IBProduct detailed description
Solar collectors can push a heat-transfer fluid to well over 100°C during stagnation, so this 35 litre vessel is built around a diaphragm that tolerates brief spikes to 130°C, with a mix of up to 50% glycol allowed in the circuit. Supplied with feet for free-standing installation.
- Capacity: 35 l
- Max. working pressure: 10 bar
- Pre-pressure: 2.5 bar
- Working temperature: -10°C to +100°C (short peaks to 130°C)
- Diaphragm: DIN 4807-3, replaceable
- Max. glycol content: 50%
- Material: white powder-coated steel
- Connection: 1''
- Net weight: 8.860 kg
2-year warranty. For closed-circuit solar systems only.
Additional parameters
| Category: | Expansion vessels |
|---|---|
| Warranty: | 2 roky |
| Weight: | 8.86 kg |
| EAN: | 5900308749258 |
| Typ: | Solárna expanzná nádoba |
| Objem: | 35 l |
| Max. pracovný tlak: | 10 bar |
| Predbežný tlak: | 2,5 bar |
| Pracovná teplota: | -10°C až +100°C (špičky do 130°C) |
| Membrána: | DIN 4807-3 |
| Max. obsah glykolu: | 50 % |
| Pripojenie: | 1'' |
| Hmotnosť: | 8.860 kg |
| Záruka: | 2 roky |
