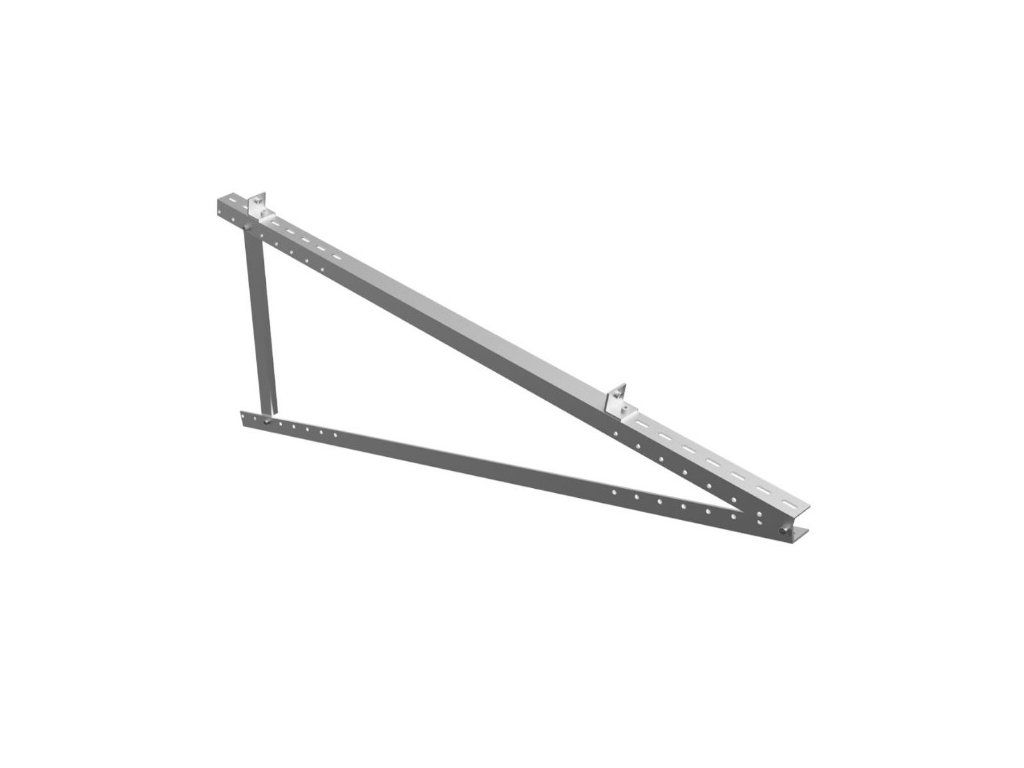

Solar panel holder triangular LARGE - PRIMARY construction for flat roof

Product detailed description

The solar panel bracket is used for mounting large solar panels on flat roofs, flat substrates, etc. For panels with aluminium frame. Can be mounted at a fixed angle of inclination of the module. Fixed triangular construction to SC brackets for mounting solar panels on flat roofs. - simple design with pre-assembled components - high quality and long lifetime - Fixed inclination - wind-resistant design up to 60 m/s - load capacity up to 143 kg/m2 - anodised aluminium (6005-T5) and stainless steel (AISI 304) Package contents: 1x 1500mm aluminium profile for flat surface 1x 1500mm aluminium profile for solar panel 1x 500mm aluminium profile for connection 2x L handles 2x M8x25mm with profile for connecting brackets and rails 5x M8x25mm bolt and nut Product parameters: - Material: anodized aluminium, stainless steel - Colour: Natural, silver - Tilt angle: fixed - Installation: outdoor - Max. Up to: 60 m/s wind speed - Weight of brackets: 1.5 Kg - Load: < 1.4 kN/m2 - Standard: AS, NZS 1170, JIS H5 302-2000 Bracket dimensions: - Aluminium profile for flat base: Length 1500mm, Depth 40mm, Height 40mm (Material thickness 4mm) - Aluminum profile for solar panel: Length 1500mm, Depth 40mm, Height 40mm (Material thickness 4mm) - Solid aluminium profile: Length 500mm, Depth 40mm, Height 40mm (Material thickness 4mm) Features 1. Quick installation 2. Stable and safety 3. Long service life 4. Great flexibility
