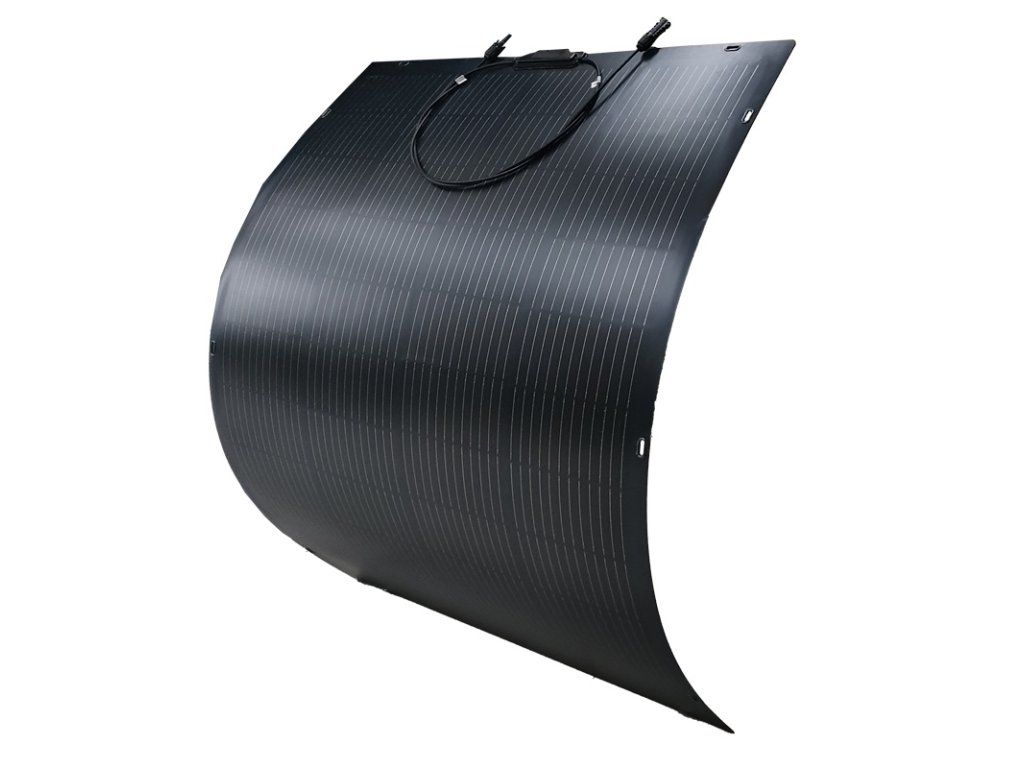

Solar panel SOLARFAM 200W, semi-flexible, 1260x905x2mm, for balcony, fence

Product detailed description

Photovoltaic solar panel SOLARFAM 200W for balcony, fence. Lightweight solar modules with better power generation efficiency and longer lifetime than traditional flexible modules. The CPC material used on the surface has good weather resistance and high light transmittance, and its performance is better than ETFE material. The integration of composite material has better protection for solar cells compared to traditional flexible panels. The panels are very lightweight, easy to carry and install. They are suitable for a wide range of applications, especially suitable for mobile off-grid systems and balconies. The panel is made of monocrystalline silicon. It is lightweight with a plastic frame with flat holes for mounting metal tie-down strips to the railing or fence structure. It is fitted with 90cm long cables with MC4 terminals. Specifications: - rated power: 200 W - maximum current (Imp): 7,84 A - maximum supply voltage (Vmp): 25.52 V - voltage at no-load (Voc): 29.92 V - short-circuit current (ISC): 8.31 A - maximum system voltage: 200 V - output tolerance: +3% - cable: 900 mm / 2.5 mm2 - connector type: MC4 / MC4 compatible - module design: CPC / EVA / back layer - degree of protection: IP67 - working temperature: -20 to +65 degrees - module dimensions: 1260 x 905 x 2 mm - weight: 4.2 kg Installation They are attached to the balcony structure or fence using the metal pulling straps included in the delivery.
