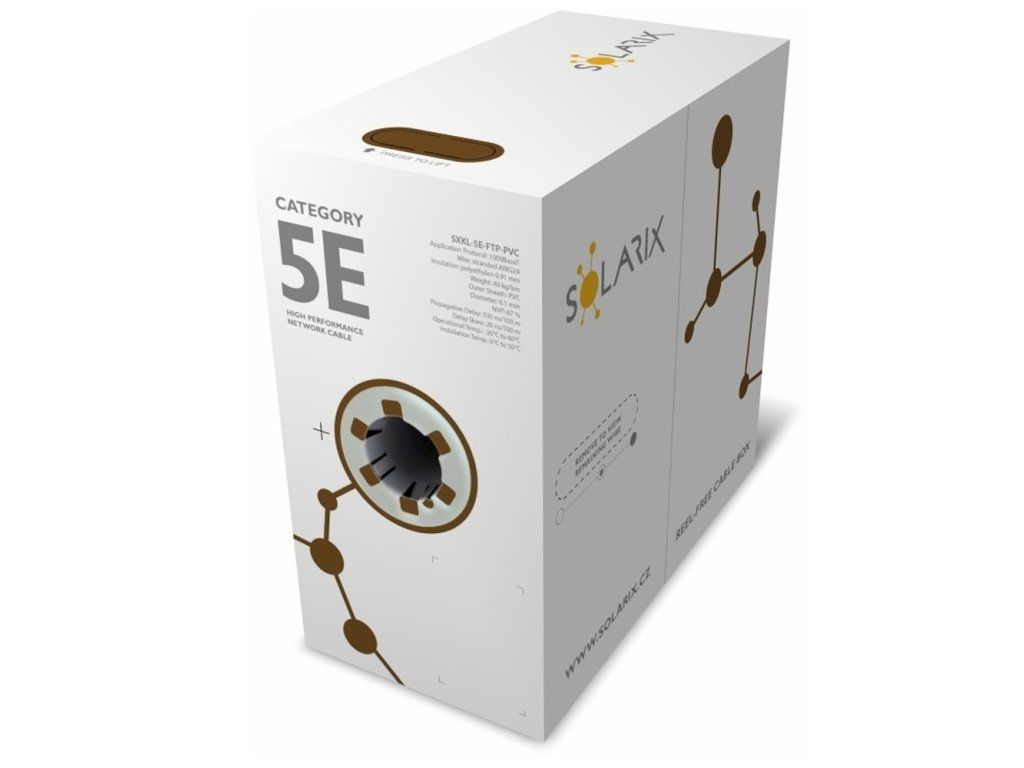

Solarix cable CAT5E FTP licna 305m PVC, SXKL-5E-FTP-PVC-GY

Product detailed description

Solarix licna cables are designed for the production of interconnection cables. Their flexibility is ensured by the fact that the individual conductors form a so-called cable, which is braided from seven thin copper wires with a diameter of 0.18 mm. The cables are available in shielded and unshielded versions. In the case of the FTP cable, the shielding is made of aluminium foil and the colour of the PVC sheath is grey. Unshielded Solarix is available in grey with PVC sheath. The licna cable is not suitable for horizontal cabling due to its characteristics (especially higher attenuation). Parameters and specifications: Category: CAT5E Supported protocols: 2.5/5GBASE-T Shielding: foil around all pairs Conductor type and size: 7 x 0.18 mm copper licna Insulation and conductor diameter with insulation: polyethylene 0, 91 mm Sheath type: PVC Sheath colour: grey Cable diameter: 6, 1 mm Weight: 37, 7 kg/km Propagation delay: 535 ns/100m Delay skew: 45 ns/100 m Storage temperature: -20°C to 60°C Operating temperature: -20°C to 60°C Installation temperature: 0°C to 50°C
