Solarix cable CAT7 SSTP wire 500m spool LSOH, SXKD-7-SSTP-LSOH

Product detailed description

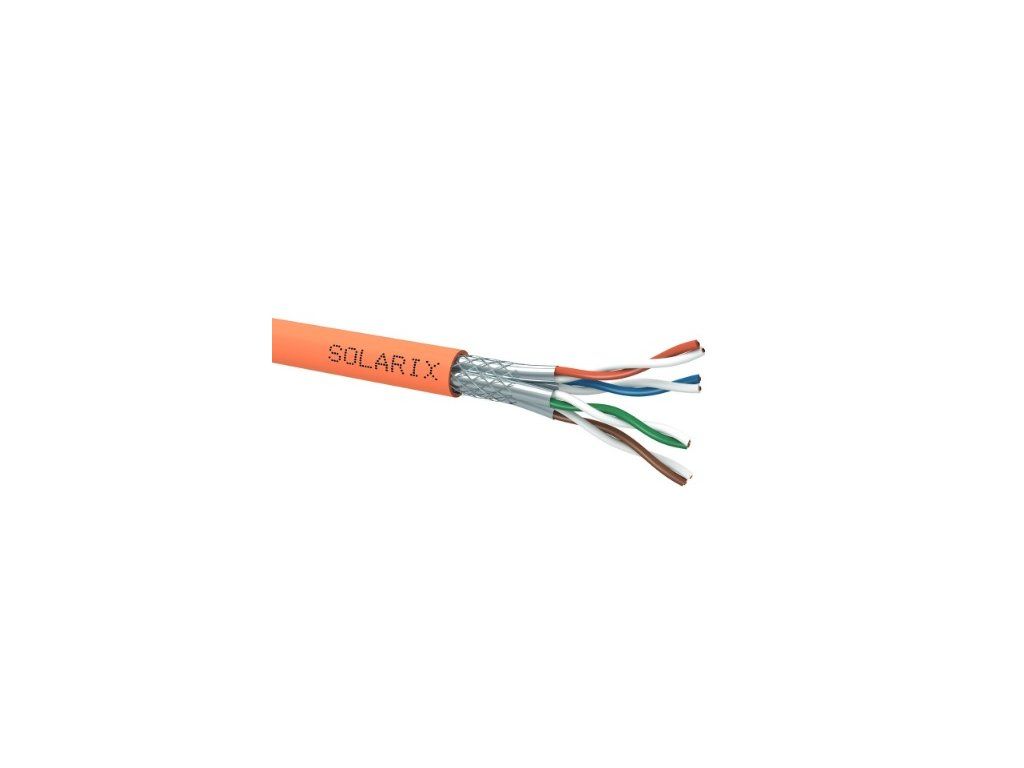

The wire cable labeled SXKD-7-SSTP-LSOH is a four-pair CAT7 installation cable with double shielding (i.e., aluminum foil around each pair and braid around all pairs) that is designed for very demanding applications. This cable exceeds the requirements specified in the international standards EN 50173 and ISO 11801 for CAT7. The cable is tested not only up to a bandwidth of 600 MHz as required by the standard, but even up to 900 MHz. The conductors of the cable are made of high quality AWG 23 copper wire with polyethylene insulation; the jacket type is LSOH. The Solarix - CAT7 installation cable is suitable for the operation of even the most demanding protocols that are designed for metallic lines and also for the emerging high-speed 10GBaseT protocol, which will not be possible to fully operate on all types of metallic cables.

Parameters and specifications:
CAT7
Highest supported protocol: 10GBaseT
The highest theoretical speed that can be achieved on the cable
Shielding: foil around each pair and braid
Bandwidth: 900 MHz
Available bandwidth
Conductor: 0, 58 mm AWG 23
Conductor type and diameter
Insulation: polyethylene 1, 4 mm
Insulation type and diameter
Sheath: LSOH
Type of tyre
Colour: orange
Cable diameter: 7 mm
Weight: 65 kg/km
NRV: 79 %
Nominal Velocity of Propagation - the ratio of the signal speed in the cable to the speed of light in %
Propagation delay: 427 ns/100 m
Signal delay on one pair
Delay skew: 12 ns/100 m
Signal delay difference between the fastest and slowest pair
Storage temperature: -20°C to 60°C
Operating temperature: -20°C to 60°C
Installation temperature: 0°C to 50°C
