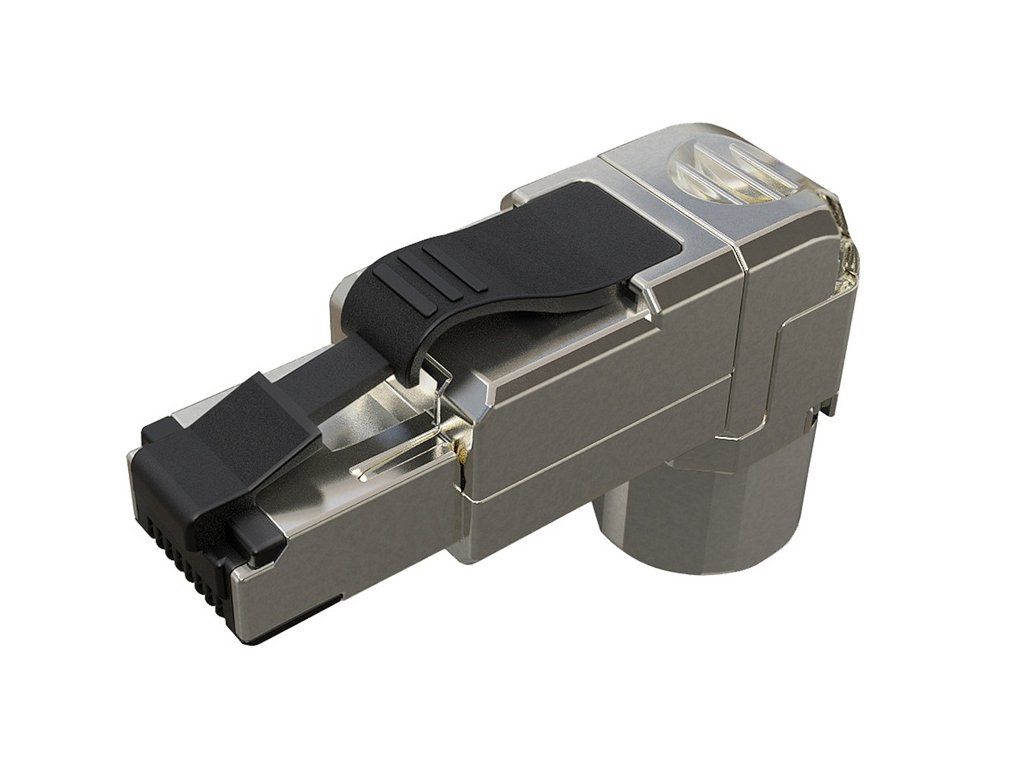

Solarix connector MPTL 90° RJ45 CAT5E STP SXRJ45-5E-STP-BK-SA-U

Product detailed description

High-quality self-cutting angled RJ45 CAT5E connector for wire type and licna suitable for UTP and STP cabling. The Solarix self-cutting angled connector SXRJ45-5E-STP-BK-SA-U is a universal RJ45 industrial connector, which is designed for both wire and licna type cables and is also suitable for use in MPTL (Modular Plug Terminated Link) topology. It is characterized by easy and quick installation, which does not require crimping pliers. The high reliability and robust metal design of this connector allows it to be used even in harsh environments. This Solarix connector seamlessly meets all the requirements defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173 for Category 5E and Class D wiring, including all the latest additions. The Solarix Category 5E self-tapping connector can be used to terminate cables with overall diameters from 6.00 mm to 8.0 mm with AWG 26-23 conductors up to 1.50 mm diameter (including PE insulation). The advantage is that the terminated cable can be directed in 4 different directions at 90° angles (i.e. up, down, left and right). *) The success rate and distance achieved for 2.5GBASE-T and 5GBASE-T protocols may vary on Category 5E and Category 6 cabling depending on the type and quality of installation, primarily due to the effect of Alien CrossTalk. Technical parameters: CAT5E Supported protocols: 2.5/5GBASE-T and below* RJ45 self-cutting 90° angle connector type Shielding: yes Wire Type: For wire and stranded (AWG 26-23) Folded: yes Contact position assignment: 8p8c Contact cover: 50 µ gold Storage temperature: -40 to 70°C Operating temperature: -25°C to 70°C Max. operating humidity: 93%
