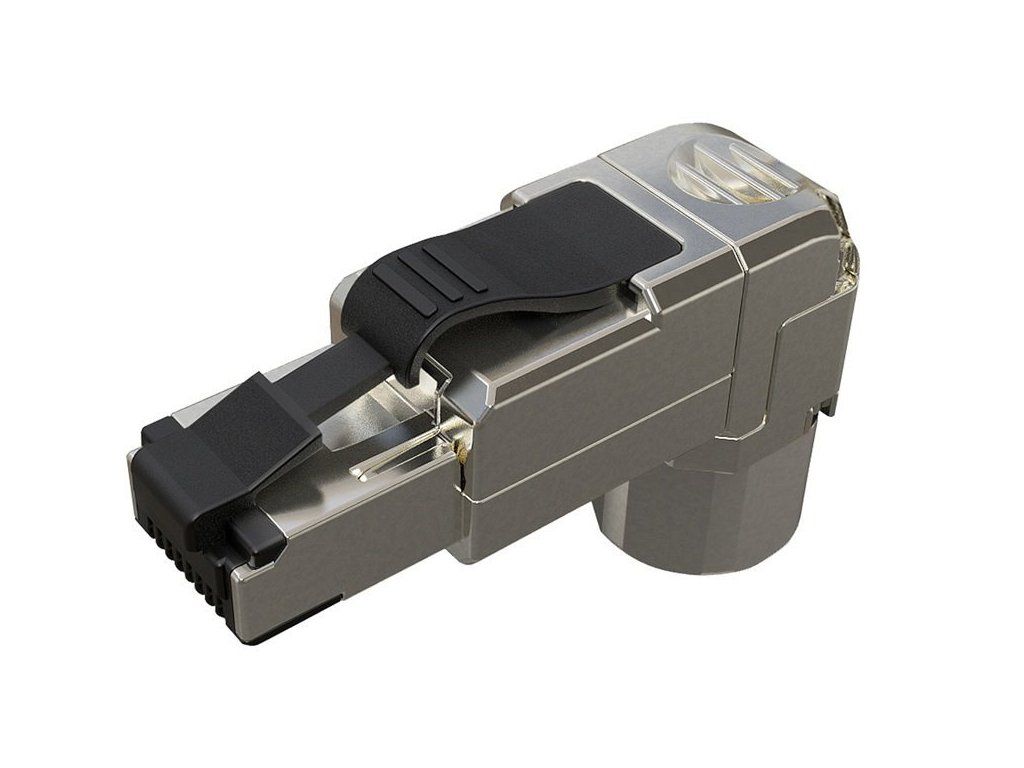

Solarix connector MPTL 90° RJ45 CAT6A STP SXRJ45-6A-STP-BK-SA-U

Product detailed description

High-quality self-cutting angled RJ45 CAT6A connector for wire and wire type suitable for UTP and STP cabling. The Solarix self-cutting angled connector SXRJ45-6A-STP-BK-SA-U is a universal RJ45 industrial connector, which is designed for both wire and stranded cables and is also suitable for use in MPTL (Modular Plug Terminated Link) topology. It is characterized by easy and quick installation, which does not require crimping pliers. The high reliability and robust metal design of this connector allows it to be used even in harsh environments. This Solarix connector seamlessly meets all the requirements defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173 for Category 6A and Class Ea wiring, including all the latest additions. The Solarix Category 6A self-tapping connector can be used to terminate cables with overall diameters from 6.00 to 8.0 mm with AWG 26-23 conductors up to 1.50 mm diameter (including PE insulation). The advantage is that the terminated cable can be routed in 4 different directions at 90° angles (i.e. up, down, left and right). Technical parameters: CAT6A Supported protocols: 10GBASE-T and below RJ45 self-cutting 90° angle connector type Shielding: yes Wire type: For wire and stranded (AWG 26-23) Folded: yes Contact position assignment: 8p8c Contact cover: 50 µ gold Storage temperature: -40 to 70°C Operating temperature: -25°C to 70°C Max. operating humidity: 93%
