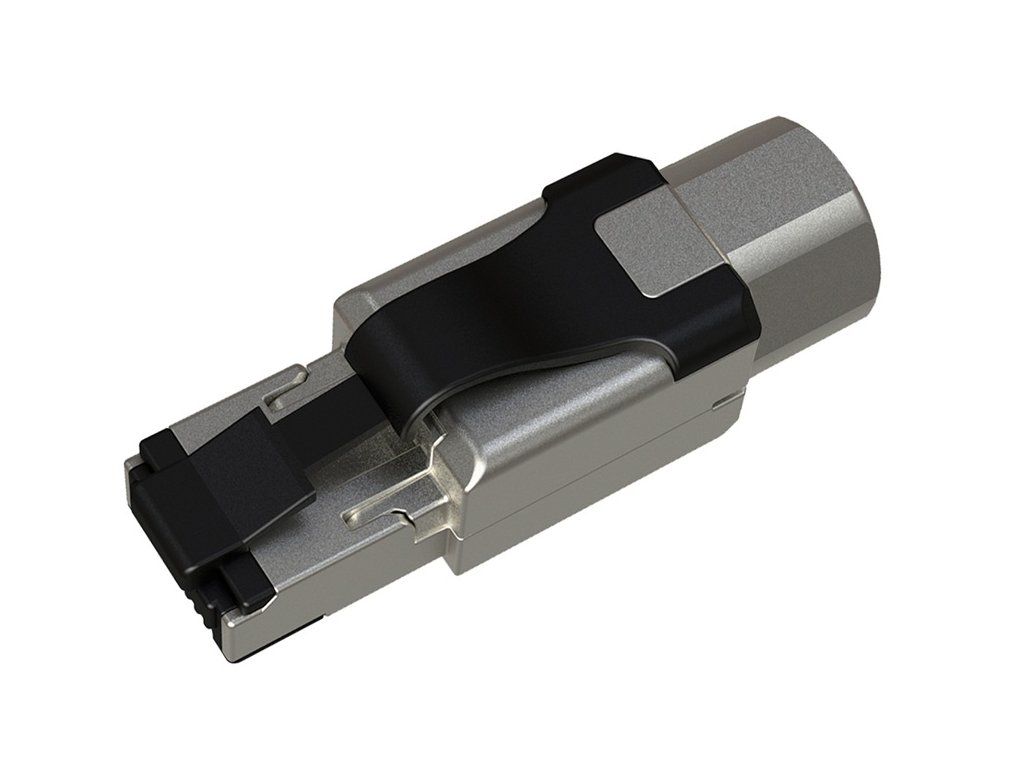

Solarix MPTL RJ45 CAT6A STP connector SXRJ45-6A-STP-BK-SA-N

Product detailed description

High-quality self-tapping RJ45 CAT6A straight connector for wire type and licna suitable for UTP and STP cabling. - Robust and highly reliable Category 6A/Class EA connector - Designed for Ethernet protocol operation, including 2.5GBASE-T, 5GBASE-T and 10GBASE-T - Very simple and fast installation, self-cutting terminal block for both wire and stranded conductors (AWG 26-23) - For shielded cables up to a total O from 6.0 mm to 8.0 mm with conductors up to O 1.5 mm (including PE insulation) - Connector contacts are gold-plated with 50 µin layer - The connector easily meets the requirements of the international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-E and is suitable for use in MPTL (Modular Plug Terminated Link) topology - Connector colour is black (plastic parts) and silver (metal body) - Length is 44.1 mm Technical parameters: CAT6A Supported protocols: 10GBASE-T and below Connector Type: RJ45 self-tapping Shielding: yes Wire Type: For wire and stranded (AWG 26-23) Folded: yes Contact positions: 8p8c Contact cover: 50 µ gold Storage temperature: -40 °C to 70 °C Operating temperature: -25 °C to 70 °C Max. operating humidity: 93 %
