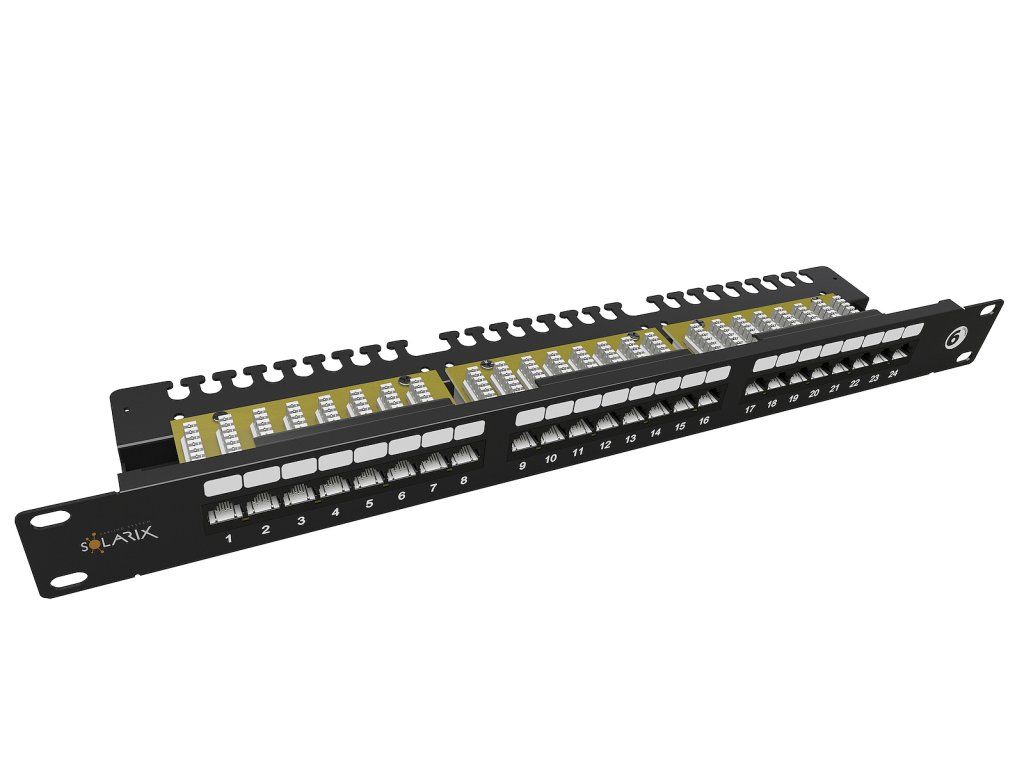

Solarix patch panel 24 x RJ45 CAT6 UTP with tie bar black 1U, SX24L-6-UTP-BK-N

Product detailed description

The Solarix SX24L-6-UTP-BK-N patch panel is an unshielded category 6 panel with 24 RJ45 ports. An important part of the body of this panel is the tie bar, which is used to firmly attach the cables. The installation cable terminates on this Solarix - Category 6 panel into a dual 110/Krone IDC terminal block - i.e. both 110 and Krone tools can be used to cut the cable. The panel terminal block is marked to both T568A and T568B standards. Like all other Solarix structured cabling components, this panel is manufactured to provide very good functionality and high reliability. This patch panel meets the requirements for Category 6/Class E components defined in ANSI/TIA 568, EN 50173 and ISO 11801 standards, including all the latest additions. The color of the patch panel is black; the size in the data rack is 1U. Specifications: CAT6 Supported protocols : 2.5/5GBASE-T and below Number of ports : 24 Tie bar : Yes Min. port life : 1000 connections/disconnections Contact Coverage : 50 µ gold and 100 µ nickel Terminal block : dual 110/Krone 8p8c Min. terminal life] : 200 notches Wire size and type : AWG 26 - 22, wire Material of non-metallic parts : FR plastic according to UL94-0 Color : Black Size : 1U Height: 44 mm Width: 484 mm Depth: 100 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93%
