Solight V60 professional multimeter

Product detailed description

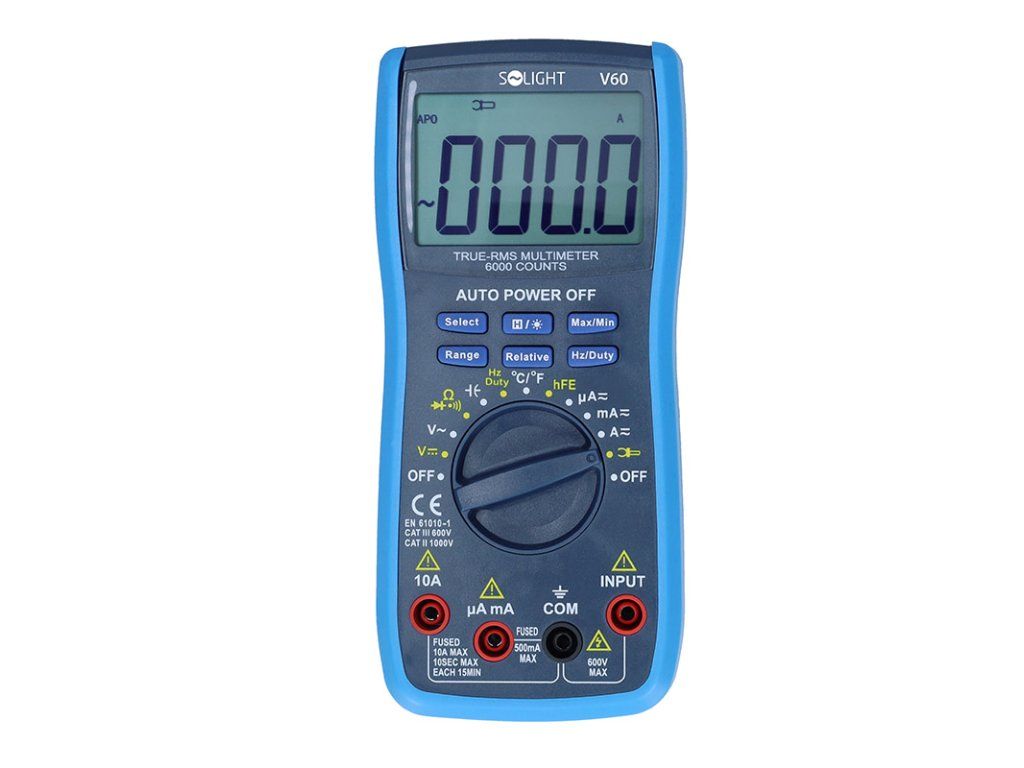

Professional multimeter Digital multimeter with backlit LCD display (64 × 42 mm) and maximum display of 6000 values. It offers HOLD function for value retention, relative measurement (REL Mode) and MAX/MIN function for recording extreme values. Diode test, hFE transistor test, continuity test with buzzer. Automatic polarity detection, dangerous voltage indication. Measures DC/AC voltage (600mV - 1000V), DC/AC current (600µA - 10A), resistance (600? - 60M?), capacitance (60nF - 60mF), temperature (-40°C - 1000°C), frequency (10Hz - 10MHz). Overload and high voltage protection (1000V DC / 750V AC). Power supply: 9V battery (6F22). Dimensions: 190 × 90 × 35 mm, weight: 357 g. Product parameters: - backlit LCD (64 × 42 mm) - automatic shutdown after 15 minutes of inactivity - Max. display values: 6000 - data hold function (retaining the measured value) - relative measurement (REL Mode) - mAX/MIN function (record maximum and minimum values) - manual and automatic measurement range - possibility of hanging with magnetic holder - automatic polarity detection - hazardous voltage indication - continuity test - buzzer - diode test (measurement of voltage drop in the pass-through direction) - hFE transistor test (measurement of PNP/NPN transistor gain) - DC voltage - range: 600mV - 1000V (±0.8% + 3 digits - ±1.0% + 5 digits) - AC voltage (True-RMS) - range: 600mV - 750V (±1.2% + 6 digits - ±1.2% + 8 digits) - DC Current - Range: 600µA - 10A (±0.8% + 5 digits - ±1.5% + 3 digits) - AC Current (True-RMS) - Range: 600µA - 10A (±1.5% + 8 digits - ±2.0% + 10 digits) - resistance - range: 600? - 60M? (±1.5% + 3 digits - ±1.5% + 5 digits) - temperature - range: -40°C - 1000°C - capacitance - range: 60nF - 60mF (±8.0% + 5 digits) - frequency - range: 10Hz - 10MHz (±1.0% + 5 digits) - low battery indication: warning icon on the display - fuse change without removing from the case - input protection by fuses: mA: F0.5A/600V, 10A: F10A/600V - high voltage protection: maximum voltage: 1000V DC / 750V AC - package contents: measuring leads, K-type thermocouple, multifunction socket for transistor test, user manual - battery type: 9V 6F22 - dimensions (H × W × D): 190 × 90 × 35 mm - weight: approx. 357 g - eN61010 standard (CAT III 600V, CAT II 1000V) - operating temperature: 0°C to 40°C (< 80% RH) - storage temperature: -10°C to 50°C (< 85% RH)
