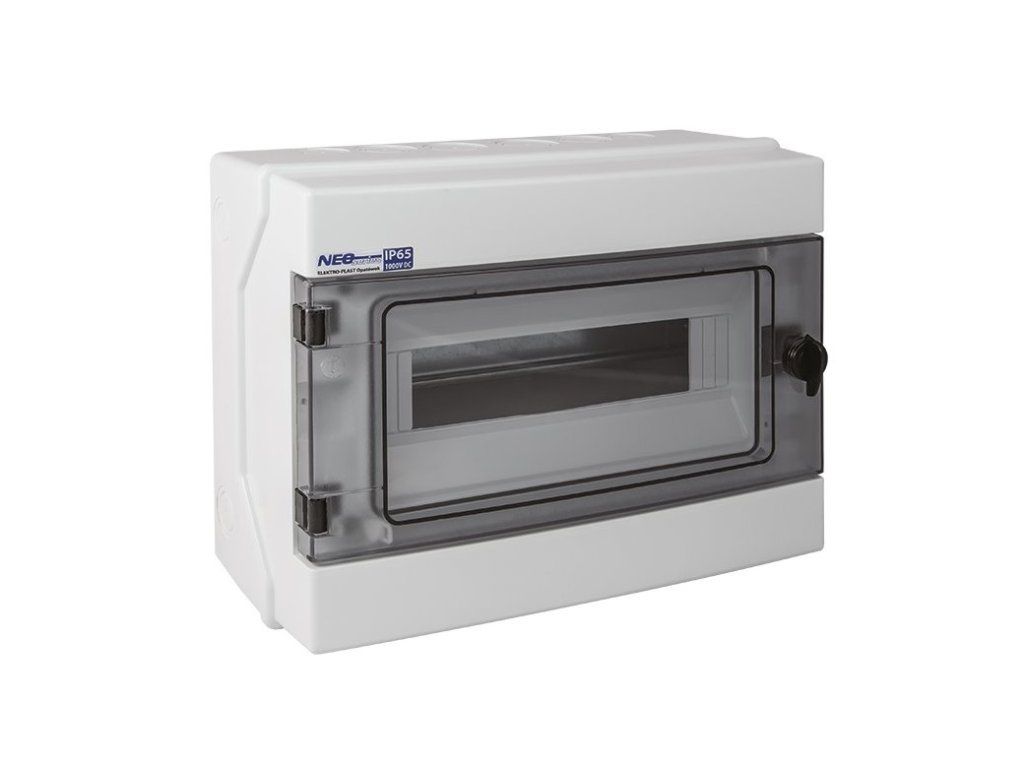

Switchboard RH-12 NEO for photovoltaics plastic. / IP65 / 1000V DC / 500V AC / 1x12 wall mounted / transparent door

Product detailed description

High quality hermetic switchboard of the RH "NEO" series for AC and dedicated DC voltage for photovoltaics. Designed for domestic and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices. The degree of protection IP65 in the RH "NEO" switchgear is provided by two types of sealing, consisting of a seal inside the enclosure and the front of the lid and an additional seal of the lid and the glass. The front part of the enclosure has a door in transparent colour. The door can be opened to the left or right side by turning the hinges to the appropriate side. It is available in a surface mount version and is widely used in installations made outside buildings. Technical parameters - Dimensions (L x W x H): 260 x 330 x 138 mm - Weight: 1.57 kg - Protection: IP65 - Operating voltage Unr: 230/400V - Insulation voltage: 500VAC 1000VDC - Rated current In AC: 100A - Number of modules: 12 - Module height range: 68-75 (95) mm - PE terminal: 11x (1.5-16) + 2x (6-25) - N terminal: 11x (1.5-16) + 2x (6-25) - Impact resistance: grade IK 07 - Halogen-free: yes - Lock: no - Class: II - Number of TH35 rails: 1x - Operating temperature: -25°C to +60°C The switchboard is equipped with: - terminal blocks for N and PE rails - mounting rail TH 35 - self-adhesive label for description Technical features - Switchboard with transparent tinted door opening to the side (left or right) - Suitable for fitting with key lock - Made of high quality, high temperature resistant >ABS< plastic - Stable operation from -25°C to +60°C - Impact resistance (grade IK 07) - Mounting depth 68 and 75 mm - 12 modules and larger models with reinforced walls for cable entry and cable glands - Door sealing option
