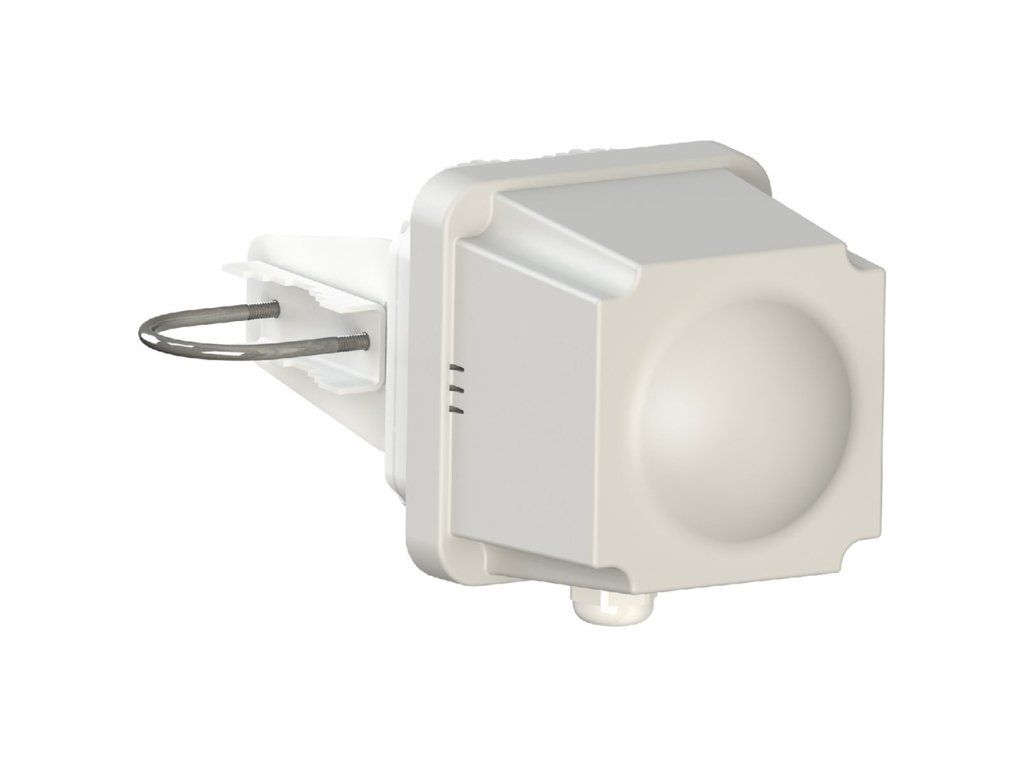

Tachyon TNA-AK-100, 100mm antenna for TNA-303x, 33dBi, 6° x 6°

Product detailed description

The TNA-AK-100 is a 100mm directional antenna for the Tachyon TNA-303X modular unit with 33 dBi gain and 6° x 6° transmitting angles. The antenna is equipped with an L-shaped bracket. With the Tachyon TNA-AK-100 13 cm diameter antenna, the TNA-303X can be easily converted into a narrow directional client unit by simply snapping the antenna on and securing with screws. The antenna has a radiation pattern of 6° × 6° and a gain of 33 dBi - making it suitable for use as a long-distance client. A bracket for precise routing is included. Technical parameters Wireless features Elevation angle (-6dB) [°]: 6 Beam angle in azimuth plane (-6dB) [°]: 6 Antenna gain [dBi]: 33 Physical characteristics Width [mm]: 130 Height [mm]: 130 Depth [mm]: 130 Weight: 0.5 kg Colour: white
