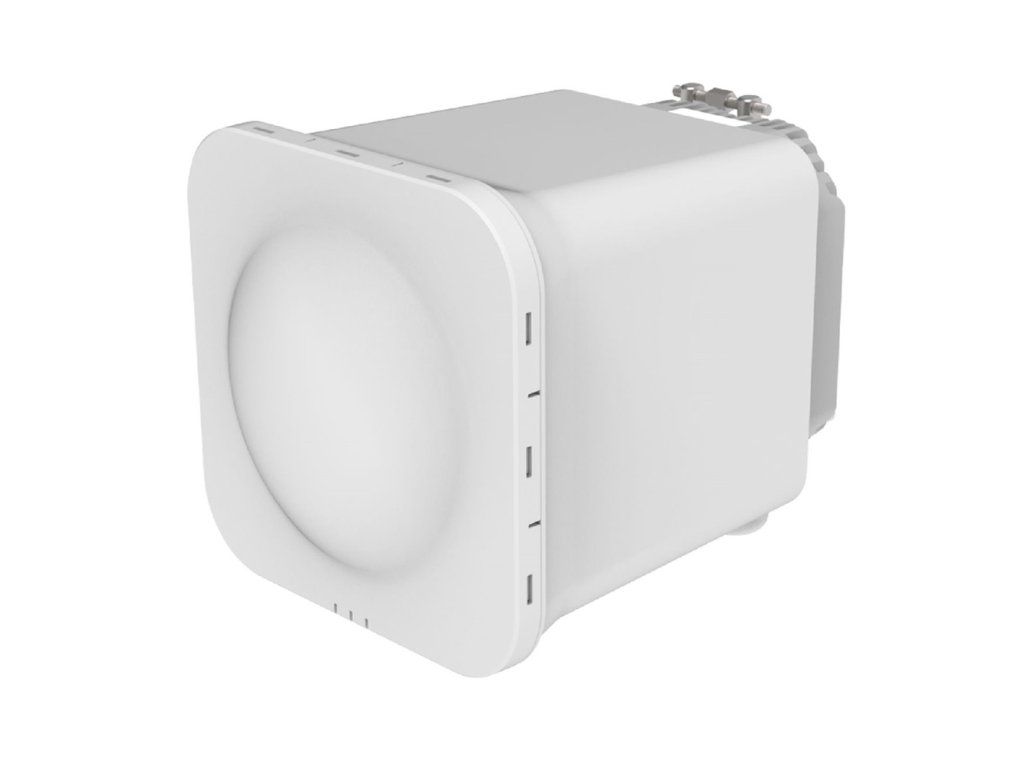

Tachyon TNA-AK-150, 150mm antenna for TNA-303x, 37dBi, 4° x 4°

Product detailed description

The TNA-AK-150 is a 150mm directional antenna for the Tachyon TNA-303X modular unit with 37 dBi gain and 4° x 4° transmitting angles. The antenna is without bracket, sold separately. With the Tachyon TNA-AK-150 15 cm diameter antenna, the TNA-303X can easily be converted into a narrow directional client unit by simply snapping the antenna on and securing with screws. The antenna has a radiation pattern of 4° × 4° and a gain of 37 dBi - making it suitable for use as a long-distance client. ATTENTION: the bracket for precise routing is NOT included. Technical parameters Wireless Features Elevation angle (-6dB) [°]: 4 Beam angle in azimuth plane (-6dB) [°]: 4 Antenna gain [dBi]: 37 Physical characteristics Width [mm]: 150 Height [mm]: 150 Depth [mm]: 180 Weight: 1 kg Colour: white
