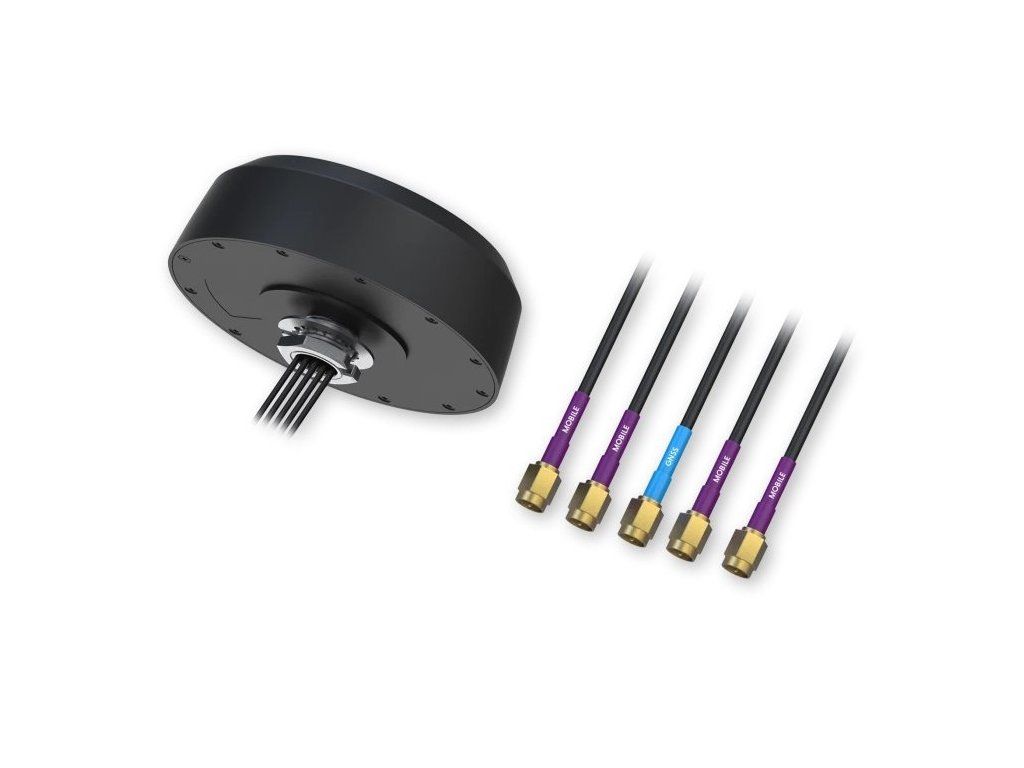

Teltonika PR1KC647 5G Combo MIMO/GNSS Roof SMA Antenna

Product detailed description

The combined roof antenna from Teltonika integrates two types of antennas into one - for 5G and GNSS. With a cable length of 3 meters and 5x SMA male connectors, it offers easy installation. Designed for outdoor rooftop use, it provides robust connectivity. The IP67 rating ensures high resistance to dust and water, guaranteeing long life and reliable operation even in harsh conditions. 5G Mobile MIMO Antenna - Frequency range: 600 ~ 960, 1400 ~ 6000 MHz - Polarization: linear - Antenna Type: Omnidirectional - Gain: Max 4.9 dBi - V.S.W.R: < 3.2 - Impedance: 50 Ohm - Connector Type and Number: 4x SMA Male GNSS Antenna - Frequency Range: 1164~1189, 1559~1606 MHz - Polarization: RHCP - Antenna Type: Directional - Gain: 17 ± 2 dB - V.S.W.R: < 2 - Impedance: 50 Ohm - Supply Voltage: 3 - 5 VDC - Current consumption: 16 ± 3 mA - Connector type and number: 1x SMA Male Mechanical properties - Cable: 4x ALS302, 1x RG174, 3000 mm - Operating temperatures: -40 °C to +85 °C - Mounting method: screws (M27 nuts) - IP protection: IP67 (after installation) / IP69K (after installation) - Weight: 780 g - RoHS compliant: Yes Technical parameters Wireless features MIMO, SISO: 4 x 4 Polarization: VH Wireless frequencies: LTE, GNSS Antenna Type: Omnidirectional Connectors and interfaces RF connectors: (5) SMA male Physical characteristics RF cable length [m]: 3 Cable type: ALS302 Degree of protection: IP67 Application: outdoor Operating temperature [°C]: -40 to 85 Weight [g]: 780 Width [mm]: 167 Height [mm]: 78 Depth [mm]: 167
