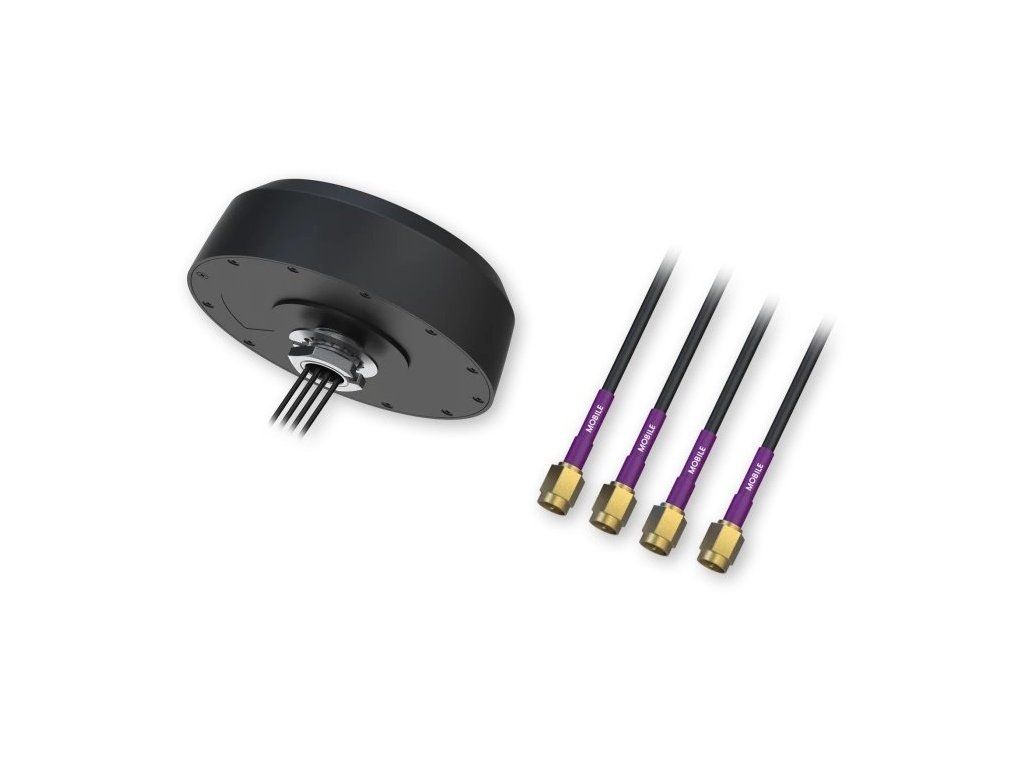

Teltonika PR1KC647 5G Combo MIMO Roof SMA Antenna

Product detailed description

The mobile 5G cherry antenna from Teltonika integrates four omnidirectional antennas into one. With a cable length of 3 meters and 4x SMA male connectors, it offers easy installation. Designed for outdoor rooftop use, it provides robust connectivity. The IP67 rating ensures high resistance to dust and water, guaranteeing long life and reliable operation even in harsh conditions. 5G Mobile MIMO Antenna - Frequency range: 600 ~ 960, 1400 ~ 6000 MHz - Polarization: linear - Antenna Type: Omnidirectional - Gain: Max 4.7 dBi - V.S.W.R: < 3.4 - Impedance: 50 Ohm - Connector Type and Number: 4x SMA Male Mechanical Features - Cable: 4x ALS302, 3000 mm - Operating temperatures: -40 °C to +85 °C - Mounting method: screws (M27 nuts) - IP protection: IP67 (after installation) / IP69K (after installation) - Weight: 701 g - RoHS compliant: Yes Technical parameters Wireless features MIMO, SISO: 4 x 4 Polarization: VH Wireless frequencies: LTE, 5G (GSM) Antenna Type: Omnidirectional Connectors and interfaces RF connectors: (4) SMA male Physical characteristics RF cable length [m]: 3 Cable type: ALS302 Degree of protection: IP67 Application: outdoor Operating temperature [°C]: -40 to 85 Weight [g]: 701 Width [mm]: 167 Height [mm]: 57 Depth [mm]: 167
