Teploměr digitální UNI-T UT325

Product detailed description

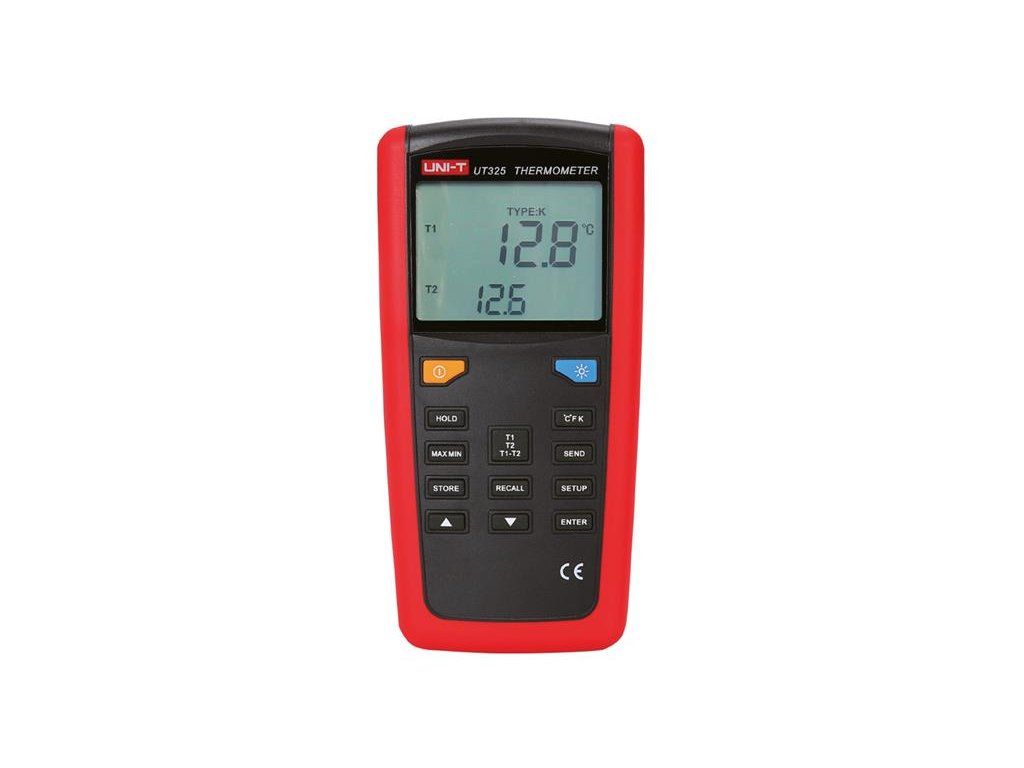

Digital thermometer UNI-T UT325
We offer a 3-year warranty on this product. The UT325 from UNI-T is a precision digital thermometer with two inputs for thermocouples with contact temperature measurement. The instrument allows you to select three different units of temperature measurement: °C/°F/K. A K-type thermocouple probe up to +260°C is supplied with the instrument as standard, but probes for temperature measurement up to 1767°C can be purchased, e.g. UNI-T T03 to T07. Up to 100 sets of measurements can be stored in the instrument's memory and later transferred via USB to a PC for further processing - data analysis using PC software. The instrument is powered by a 9V battery (6F22) or via USB from a PC.


Product Parameters :

- high accuracy and PC connectivity at a great price
- 2 four-digit LCD displays
- temperature reading resolution: 0.1 °C; within ＞999.9 °C then 1 °C
- possibility of connecting thermocouples of types K, J, T, E, R, S, N
- selection of measurement units: °C/°F/K
- data storage: yes, for 100 sets of measurements
- data transfer to PC: yes, via USB interface
- low and high temperature alarm: yes
- automatic calibration: yes


Technical parameters :

Temperature ranges // accuracy :
- k-type thermocouple: -200.0 °C to +1372 °C //± (0.2 % + 0.6)
- type J thermocouple: -210.0 °C to +1200 °C //± (0.2 % + 0.6)
- type T thermocouple: -250.0 °C to +400.0 °C //± (0.2% + 0.6)
- type E thermocouple: -150.0 °C to +1000 °C //± (0.2 % + 0.6)
- type R thermocouple: 0.0 °C to +1767 °C // ± (0.2% + 2)
- type S thermocouple: 0°C to +1767°C //± (0.2% + 2)
- n-type thermocouple: -200 °C to +1300 °C //± (0.2% + 1.5)

- lCD display dimensions: 30 x 32 mm, 2 four-digit readouts
- temperature reading resolution: 0.1 °C; within ＞999.9 °C then 1 °C
- selection of measurement units: °C/°F/K
- automatic calibration: yes
- two probe inputs: yes
- mAX/MIN/AVG mode: yes
- high and low alarm: yes
- data storage: yes, 100 sets
- data transfer to PC: yes, USB interface
- automatic backlight: yes, when working with USB connected
- automatic calibration: yes
- automatic shut-off: yes
- low battery indication: yes
- power supply: USB or 9V battery (6F22)


General characteristics :

- product colour: red and grey
- net product weight: 270 g
- product dimensions: 175 x 85 x 30 mm

Contents of the individual package :

- uT325: 1pc
- 9V battery (6F22): 1pc
- uSB interface cable: 1pc
- Software CD for PC: 1pc


Contents of wholesale packaging:

- standard quantity per carton: 10pcs
- dimensions of standard carton: 405 x 290 x 165 mm
- weight of standard carton: 4.3 kg
