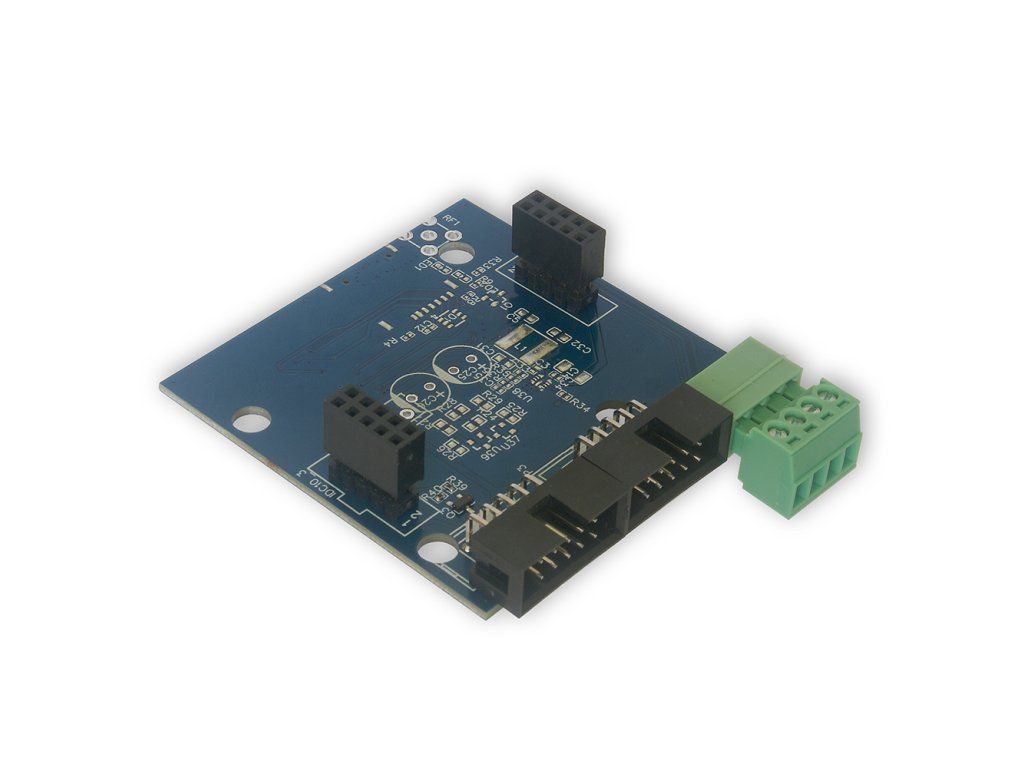

tHAT2 - 4 relay outputs and Modbus converter
Code: ABCT_A500004894Product detailed description
the tHAT2 offers an additional 4 relay outputs in open collector standard that are controlled from PWM outputs. For LAN Controller HW 3.7, 3.8 The board also has an RS485 converter for Modbus support. Relay outputs OUT1-4 and power supply voltage, analog inputs INPA1 and INPA2, as well as 3.3V voltage to power the sensors are also provided. The overlay is available in a version with IDC10 connectors for relay board connection.Additional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 0.04 kg |
