Product detailed description

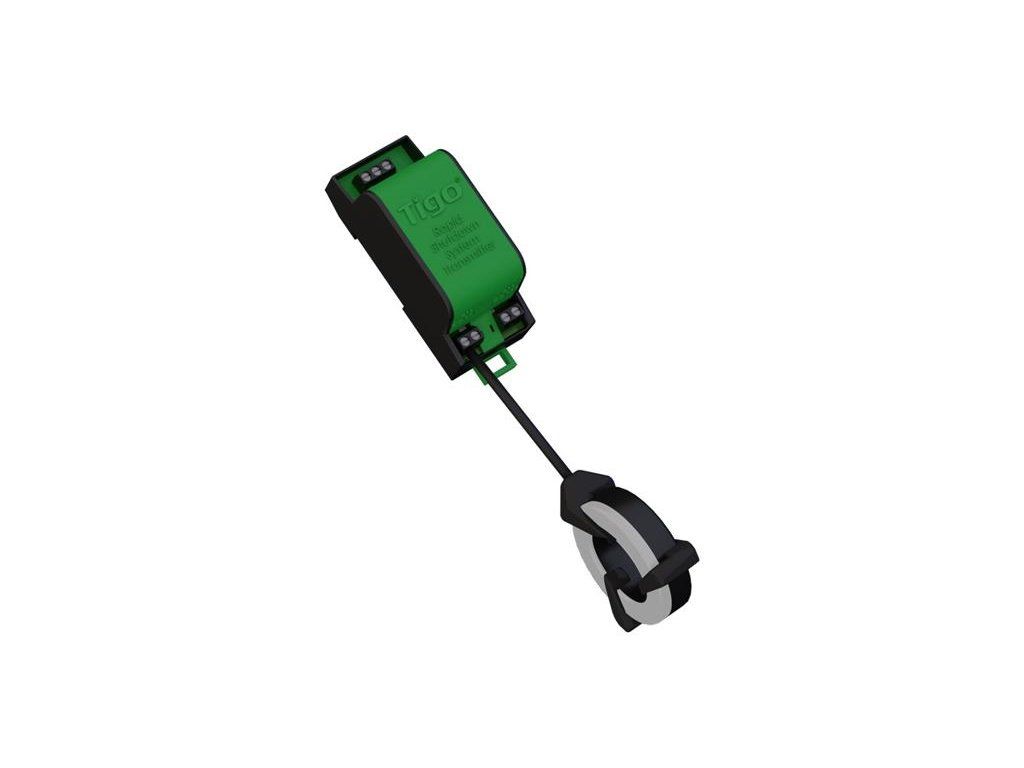

RSS (Rapid Shutdown System) transmitter to complement Tigo TS4-A-F and TS4-A-2F disconnectors.

- IP68 protection
- Input voltage: 12 V
- Voltage type:DC
- Input current: 1 A
- Power consumption: 5.5 W
- max. current: 150 A
- max. voltage: 1500 V
- max. number of strings per core: 10
- operating temperature: -40 to +85 °C
- dimensions: 38 x 10 x 41.3 mm
- weight: 0,59 kg

A UL-certified, multi-manufacturer solution that meets the requirements of NEC 690.12 2017/2020 code.
Deactivation at module level with automatic or manual shutdown.
Easy to install, no commissioning process required.
Compatible with the largest network of UL-certified inverters for residential and commercial buildings.
Integrated into many inverters, allowing plug and play installation with the Tigo TS4-A-F and TS4-A-2F.

The RSS transmitter sends a signal to the TS4-F and TS4-A-2F units to keep the PV modules connected when they are on and supplying power. The TS4-F units will automatically switch to fast shutdown mode when the RSS transmitter is turned off. And they will resume power generation when the RSS transmitter power is restored. This solution complies with NEC 2014, 2017 and 2020 690.12 specifications for fast power-down using power line communication (PLC).
Available as a kit, DIN rail or PCBA for integration into inverters.

Features: quick disconnect device for Tigo TS4-A-F and TS4-A-2F
