Tinycontrol current sensor for LAN driver v3, 0A to 30A

Product detailed description

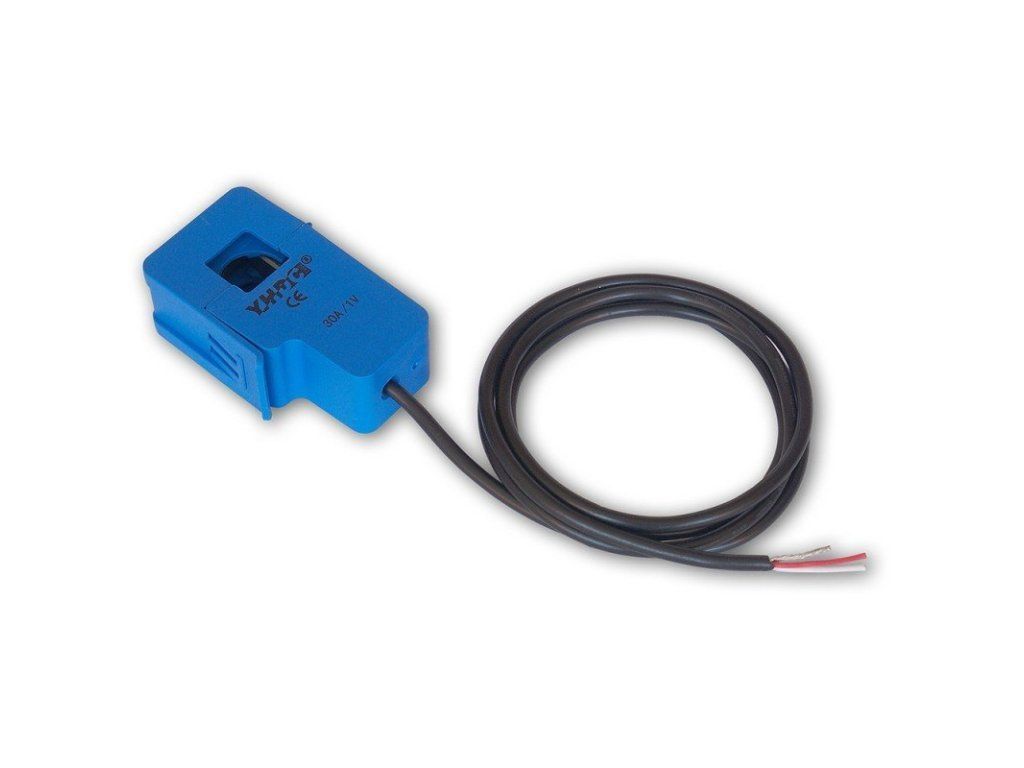

Non-invasive current transformer SCT-013-030 for current measurement by indirect method. The output AC voltage is proportional to the current in the main conductor and is designed for the V3 LAN driver. Measurements should only be made on one conductor and not on the entire cable where current flows in both directions. The sensor connects to the INPA1-4 and GND inputs for these inputs. It is supplied with a 3.5 mm jack connector (male) which can be cut in the desired length or a 3.5 mm jack connector (female) can be connected to the LAN driver with the wiring see photos. Technical specifications: AC current range: 0-30A (AC) Maximum diameter of the wire to be measured: 12 mm Built-in sampling resistance: 62 Ohm AC output voltage: 0-1V AC Cable length: 1 m Weight: 45 g
