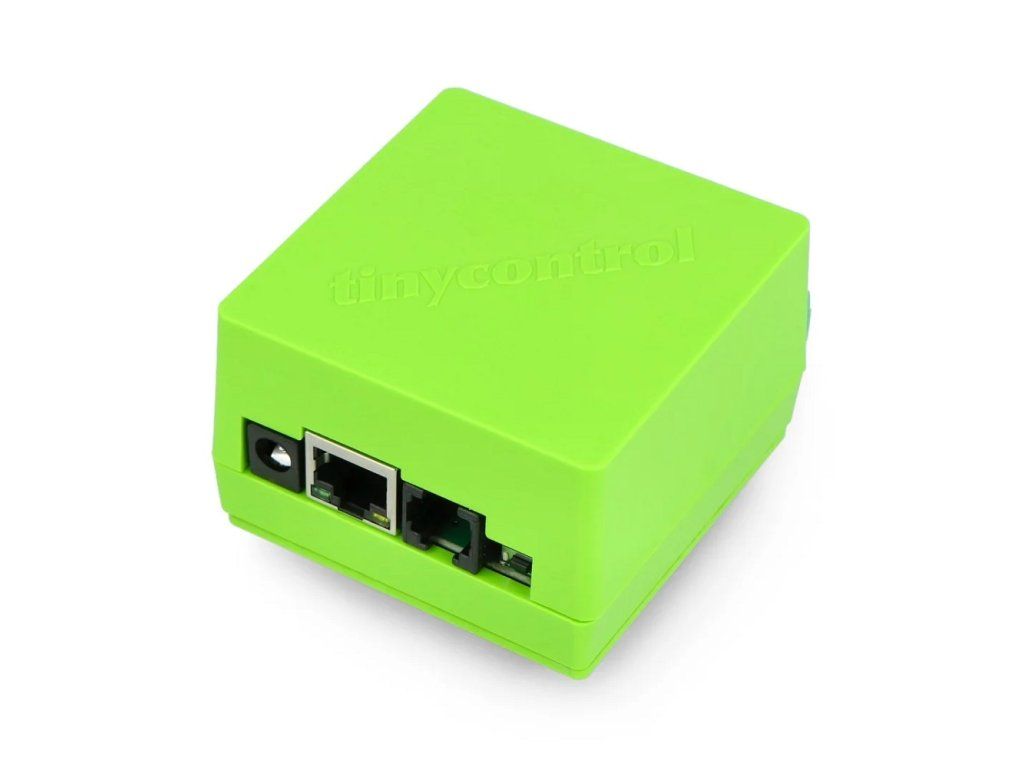

Tinycontrol LAN controller with relay V3.9 IoT/95009

Product detailed description

Compared to version 2, this is a completely new device, as the functionality has been greatly expanded, but the price has risen along with it. The main difference from the previous version is the ability to act as a web server, which offers reading of different types of sensors: temperature, humidity, voltage, current, events and allows remote control of up to 6 outputs.New HW version 3.8 - improved manufacturing process for more stability and better functionality.

Advanced hardware
Amplifiers for measuring small signals have been added to the new version, e.g. it is possible to measure AC current easily and safely. There is also a PWM control output, e.g. for controlling the brightness of a light or the speed of a servo modeling control. For easy installation of the board in a remote location, the board can be powered by PoE. Also software updates by the user are now very easy.

New extensions
The new version also means new opportunities for expansion - in addition to a rail of 1-dyte temperature counters, an I2C serial port is available, to which the corresponding sensors are ready. A new 1Wire bus splitter with I2C and new relay boards are also available. The splitter and relay PCB are on the base and can be DIN rail mounted.

New communication protocol
In addition to the HTTP and SNMP used in the previous version to exchange data with other devices, support for the new MQTT protocol developed and made available by IBM for Internet applications has also been added. At the heart of this protocol will be a service for remotely collecting, processing and viewing data sent over the LAN by the controller, as well as controlling the outputs even when the device is behind the router.

Modern web server
A powerful 32-bit processor was used to create a modern web interface with highly functional advanced tools. Comprehensive menus, functional graphics, scroll boxes and option buttons for comfortable use. Additionally, you can enable and disable component visibility and upload your profile, creating great configuration and usage options for advanced users who want to customize the controller to suit their requirements.

A series of events
Version 3 has more extensive features for programming activities when a condition is met on one of the sensors. You can now check conditions simultaneously on two inputs and set the Boolean operators when the output is running. You can easily configure and add new lines to your "program".

Planner
Useful for many applications can be the Scheduler, which allows you to turn on/off the device at a specified time or after a certain period. Also new in version 3 is the introduction of a virtual output EVNT. We can use it as a condition in the event field, simply by programming the method, time and circumstances of the event inclusion. The new look of the scheduler makes it easier to use, providing extensive options to set it not just for the day of the week, but for a specific date.


Technical Specifications:

- Power supply: 8-55V
- Power consumption: 0.5 W - without activated relay
- PoE: Yes, passive
- Interface: 100 Mbit/s Ethernet
- relay: 10A 255VAC
- Operating temperature: -20 to 85 degrees C°
- Size 60x68mm
- Weight 50 g


Basic features:

- 4 analog inputs with switchable gain - Measure voltage from 1 mV to 33 V , DC current, AC current (additional sensors), support 4-20 mA sensors, thermocouples, distance sensors, photoresistors for light measurement and many more.
- 2 analog inputs up to 3.3V - for DC voltage and current measurement (for additional sensors)
- 1Wire and I2C input - 6x DS18B20 temperature sensors and 2x I2C humidity sensor AM2320
- 4 logic inputs
- 1 relay (NC, NO, C)
- 1 transistor output, provides supply voltage at the output, for controlling devices with current consumption up to 1A
- 4 transistor (OC) outputs for switching relays,
- 4 PWM outputs with servo control capability *
- UART interface for communication with external devices (e.g. Duralux) or other devices via serial port
- Cooperation with communication modules such as Lora, GSM - possibility to send SMS *
- Temperature and supply voltage measurement on the board
- Modern and convenient web interface, java-script support
- Ability to upload your own website *
- Ability to configure your own panel and upload your own background settings* and display the necessary data or buttons
- Login as administrator - configure and view status as user
- Logical operations AND, OR, NAND, NOR, XOR with inputs and events
- SNMP, HTTP GET/POST, MQTT *
- Remote output control device


The manufacturer provides the MQTT cloud service for status display and control via the Internet. With this serviceit is possible to switch outputs or monitor LAN driver states in the local network without routing settings, but the operation of the service cannot be guaranteed. In the case of using the MQTT service, the mobile app can also be used. It is available for Android devices andallows you to control outputs and monitor the status and values of inputs simply via your phone.

The LAN driver is supplied with a DIN rail installation box without power supply.
