Tinycontrol ON/OFF/PWM add-on board for Lan Controller v2

Product detailed description

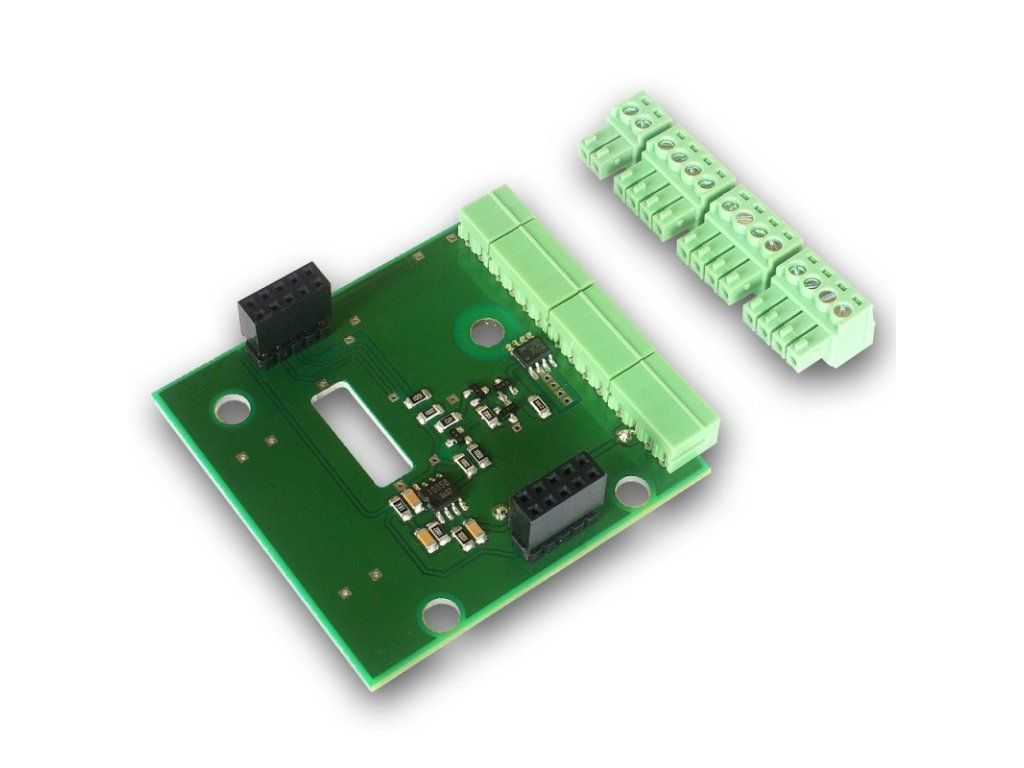

The board was designed as a cover layer for the LAN driver with V2.0 relay and fits into the original cover (modifications for connectors). It is equipped with 4 powerful MOSFETs that can be used to power devices with 1-3a power consumption. By controlling the connection of these transistors from the LAN Controller panel (OUT outputs 1-4), we can enable or disable loads powered from the input. Similarly, when these outputs are enabled, we can control the percentage of PWM fill, thus controlling power (e.g., LED strips). Controlling PWM OUT1 can be done directly via the web page, while the others can only be done using the HTTP command required in the manual, but this way you can create simple HTTP scripts to control e.g. lighting. The maximum load is about 3A if you use the first output or 1A if you use all outputs simultaneously. The TR overlay also includes a 0.1 Ohm resistor for measuring the current of INP4 and measuring the voltage at the INP5 output. The TR board supplies power to the LAN driver, you must disconnect other power supplies, including POE! Power from the LAN driver does not go to the TR board. Specifications: - Number of control channels - 4 - Control functions - ON / OFF / PWM for power supply - Voltage monitor - 0-36V - Current monitor - 0-3ADC - Supply voltage - 9-28V - Maximum current regulation - 1A x 4 channels or 3A x 1 channel
