Tinycontrol tBSm splitter 3× RJ-12, for LAN driver v4

Product detailed description

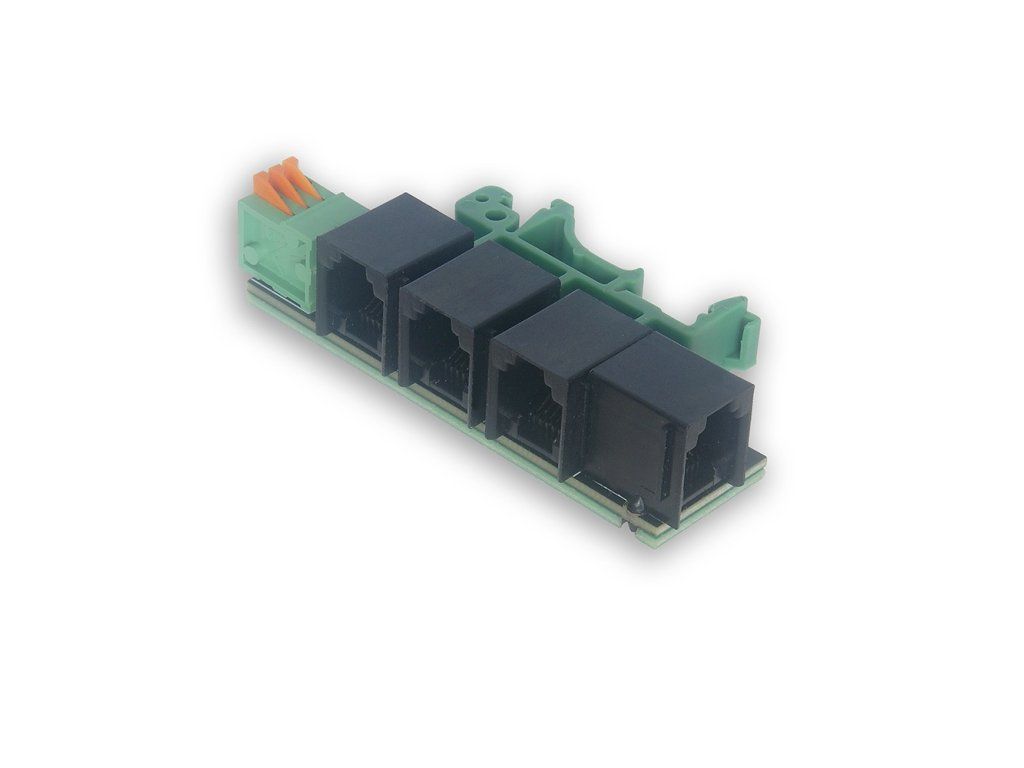

Tinycontrol tBSm splitter Small universal splitter with spring connector for easy extension of single core twisted pair cable. The splitter is suitable for all Tinycontrol devices equipped with an RJ-12 port. It replicates this port to three universal ports. Allows for easy 1-Wire extension even at a remote location using twisted pair or other cable with approximately 0.5mm diameter conductor. A six-wire cable is included for connection to the LK4 LAN controller. Note: Do not connect cables longer than 3 m with an I2C or 1wire bus that does not come from TinyControl and contains more than 3 wires in an RJ-12 connector. This may cause incorrect operation of the I2C bus. Product parameters: Connector 1: 1× RJ-12 Connector 2: 3× RJ-12 Color: green-black
