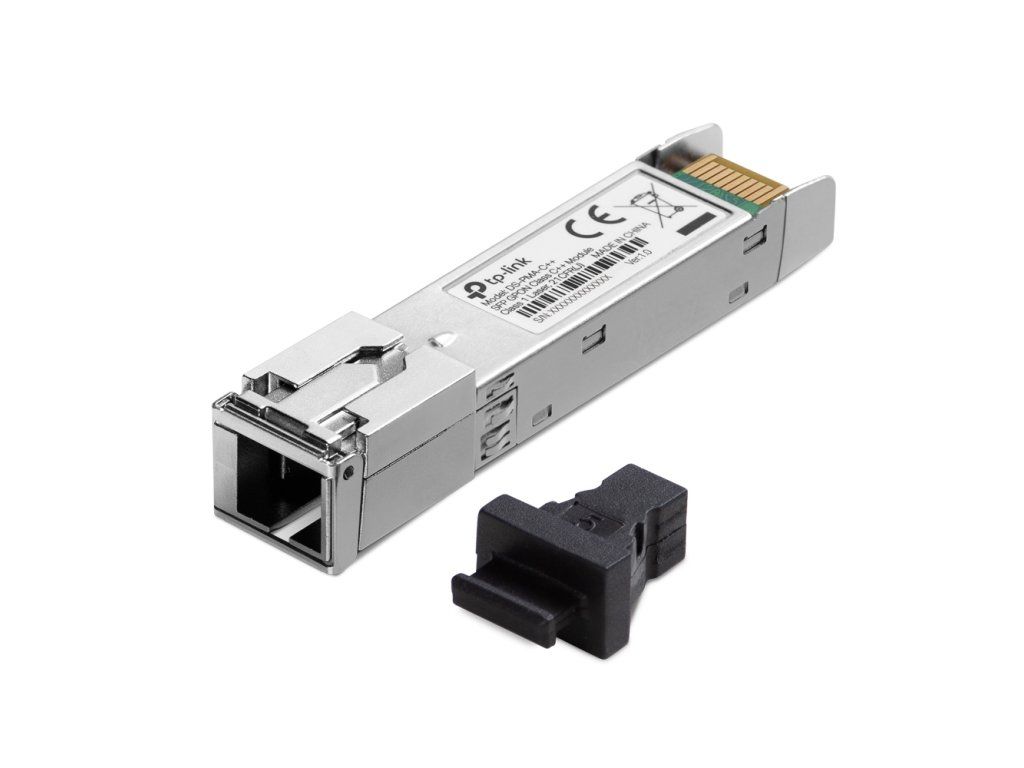

TP-Link DS-PMA-C++, GPON Class C++ SFP module

Product detailed description

TP-Link GPON SFP module with the DS-PMA-C++ designation is designed for GPON slots in TP-Link OLT units. It is a special SFP module with asymmetric speed of 2.5Gbps upload, 1.25Gbps download in the direction of clients. The GPON SFP module is terminated with a SC connector with UPC grinding and has a range of up to 20km. The transmit power of the module is 5 to 10dBm, the receive sensitivity is -31dBm. Technical parameters Optics Format: SFP For Cable Type: Single Mode Transmission Rate: 1.244 / 2.488 Gbps Wavelength - Tx/Rx [nm]: 1490 / 1310 Range [km]: 20 Transmission Type: GPON Grinding Type: UPC Transmitting power [dBm]: 5 to 10 Receive sensitivity [dBm]: -31 Connectors and interfaces Optical connectors: (1) SC Software DDMI diagnostics: Yes
