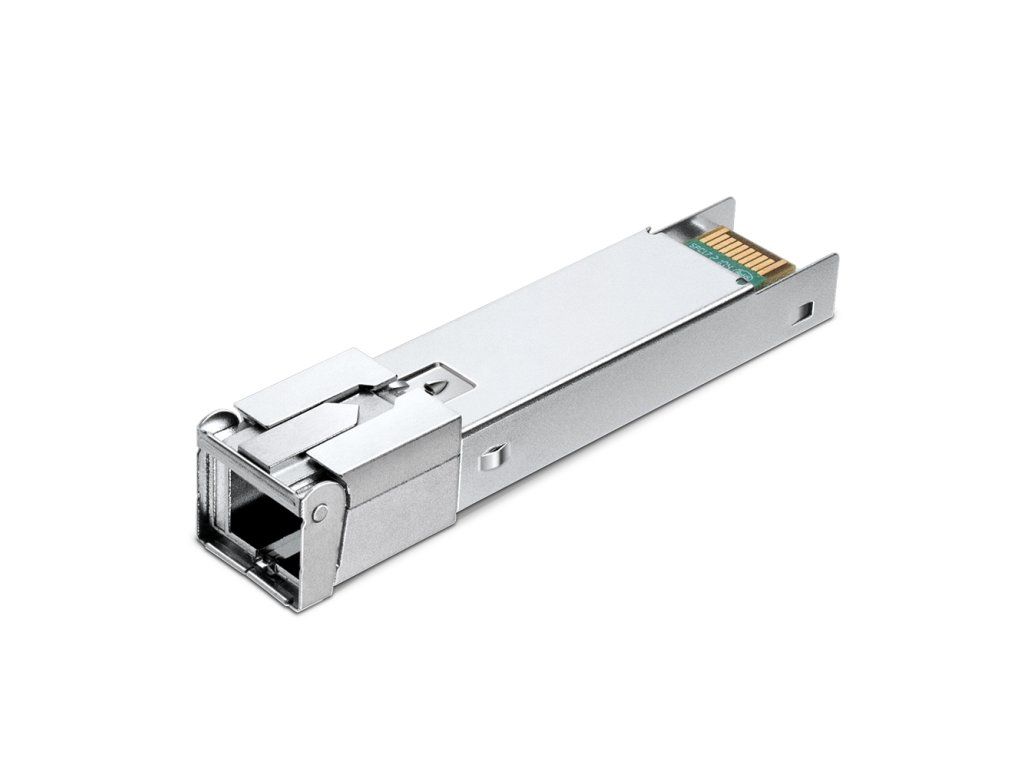

TP-Link DS-PMA-C+ - GPON OLT SFP optical module, Class C+

Product detailed description

DS-PMA-C+ GPON SFP module is designed for GPON slots in TP-Link OLT units (DS-P7001-16, DS-P7001-08 and DS-P7001-04). It is a special SFP module with asymmetric speed of 2.5Gbps upload, 1.25Gbps download in the direction of clients. The GPON SFP module is terminated with a SC connector with UPC grinding and has a range of up to 20km. The transmit power of the module is 3 to 7dBm, the receive sensitivity is -12 to -30dBm. Technical parameters Optics Format: SFP For Cable Type: Single Mode Transmission Rate: 2.488/1.244 Gbps Wavelength - Tx/Rx [nm]: 1490 / 1310 Range [km]: 20 Transmission Type: XPON Grinding Type: UPC Connectors and interfaces Optical connectors: (1) SC General Compatibility Software DDMI Diagnostics: Yes
