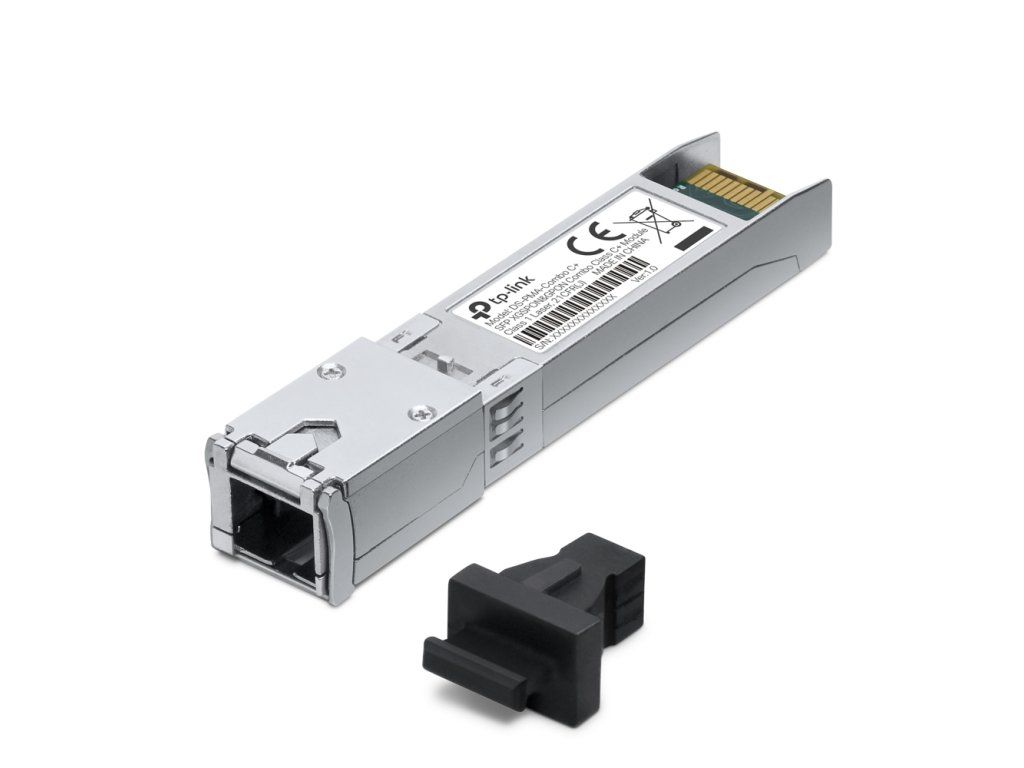

TP-Link DS-PMA-Combo C+, XGS-PON/XG-PON/GPON SFP+ Class C+ optical module

Product detailed description

TP-Link DS-PMA-Combo C+, XGS-PON/XG-PON/GPON SFP+ Class C+ optical module The TP-Link XGS-PON/XG-PON/GPON SFP+ module with the DS-PMA-Combo C+ designation is designed for slots in TP-Link OLT units. It is a Class C+ module that is terminated with a SC connector with UPC grinding and has a range of up to 20km. The module has different characteristics when used in XGS-PON, XG-PON, GPON. Wavelength XGS-PON: Tx:1577/ Rx:1270 XG-PON: Tx:1577/ Rx:1270 GPON: Tx:1490/ Rx:1310 Transmission speed XGS-PON: 9.953Gbps/9.953Gbps XG-PON: 9.953Gbps/2.488Gbps GPON: 2.488Gbps/1.244Gbps Transmit power and sensitivity XGS-PON: TX power: 3 to 8dBm, RX sensitivity -29dBm XG-PON: TX power: 3 to 8dBm, RX sensitivity -30.5dBm GPON: TX power: 3 to 7dBm, RX sensitivity -32dBm Technical parameters Optics Format:SFP+ For Cable Type:Single Mode Transmission Rate:2.44 / 9.95 Gbps, 9.95 / 9.95 Gbps, 1.244 / 2.488 Gbps Wavelength - Tx/Rx [nm]:1490 / 1310, 1577 / 1270 Range [km]:20 Transmission Type:GPON, XG-PON, XGS-PON Grinding Type:UPC Connectors and interfaces Optical connectors:(1) SC Software DDMI Diagnostics:Yes
