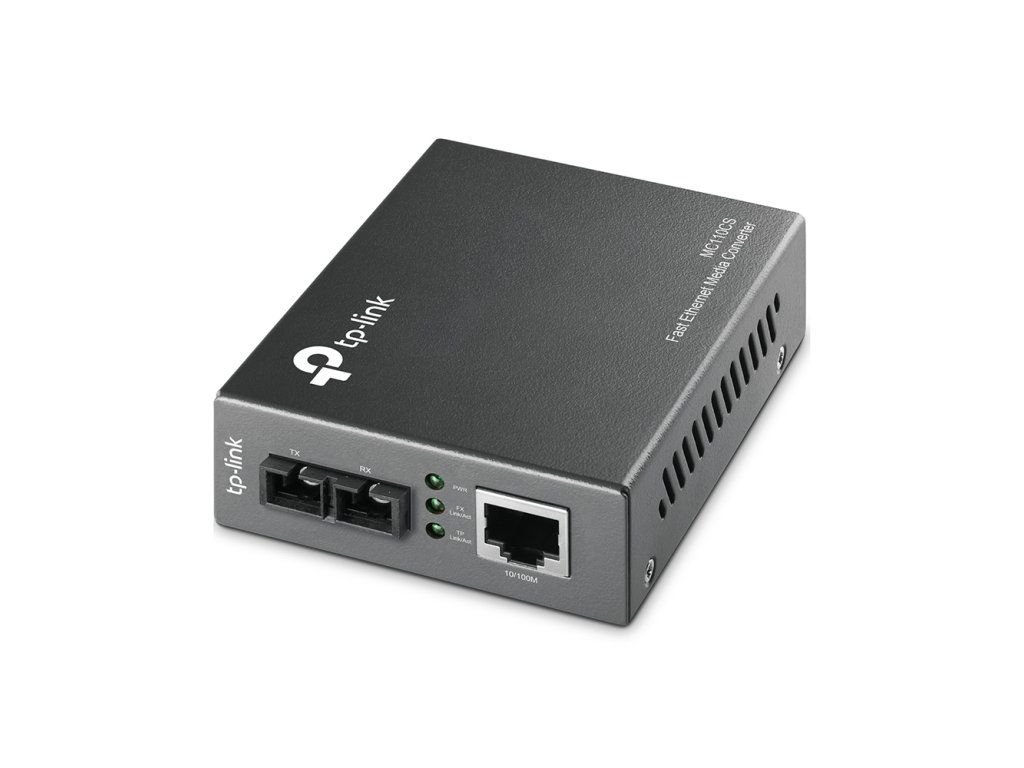

TP-Link MC110CS SingleMode converter, 10/100Mbps, 2x SC

Product detailed description

The MC110CS is a media converter designed to convert media from 100BASE-FX optical line to 100BASE-TX metallic line and vice versa. The MC110CS media converter, which has been designed to IEEE 802.3u 10/100Base-TX and 100Base-FX standards, is intended for use with singlemode fiber optic cable with an SC-type connector. The MC110CS media converter supports the long-wavelength laser (LX) specification at maximum packet forwarding rates. It uses a wavelength of 1 310 nm for both receiving and sending data. Additional features of this module include the ability to be used as a standalone device (no chassis required) or with a TP-LINK 19' chassis, automatic MDI/MDI-X detection for the TX port, automatic duplex mode negotiation on the TX port, and front panel status LEDs. The MC110CS supports data transmission over single mode fiber optic cable over distances up to 20 km. Technical parameters Physical characteristics Operating temperature [°C]: 0 to 40 Depth [mm]: 95 Width [mm]: 73 Height [mm]: 27 Connectors and interfaces Connectors: (2) SC LAN speeds: (1) 10/100Mbps Power Max. power consumption [W]: 1.5 Power supply type: DC connector Power supply via connector/socket: 9V / 0.6A Optics For cable type: Single Mode Transmission Speed: 100 Mbps Wavelength - Tx/Rx [nm]: 1310 Range [km]: 20
