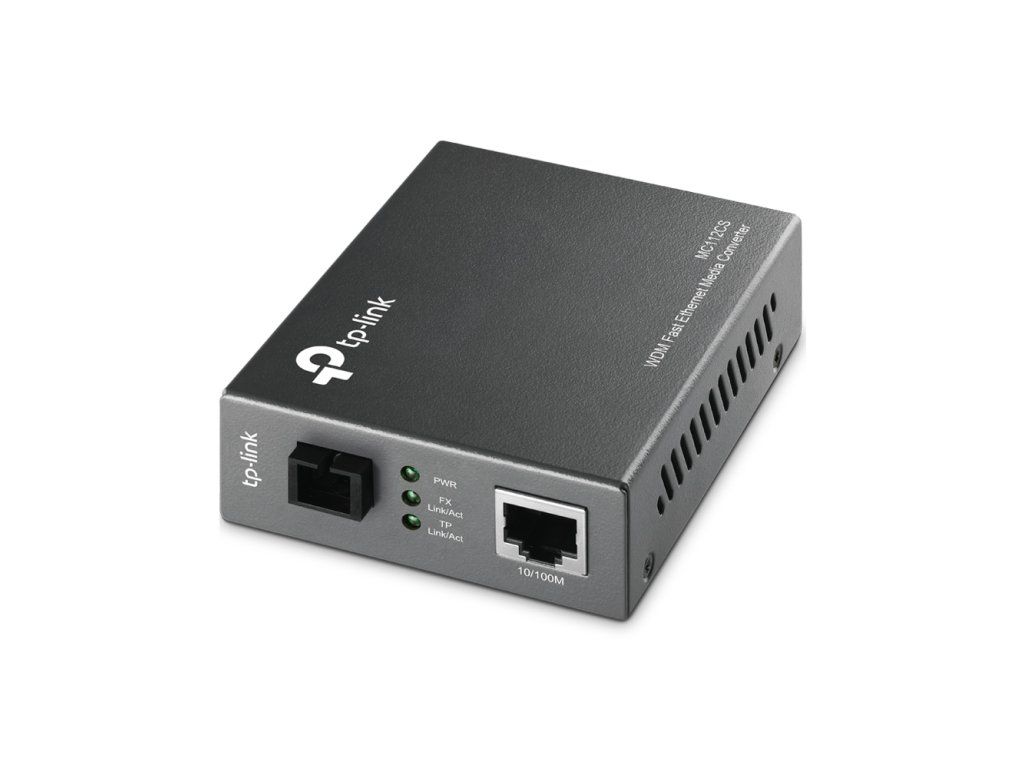

TP-Link MC112CS SingleMode converter, 10/100Mbps, 1x SC

Product detailed description

The MC112CS is a media converter designed to convert media from 100BASE-FX optical line to 100BASE-TX metallic line and vice versa. With WDM technology, the MC112CS module uses only one optical cable to send and receive data, cutting cabling costs in half. Designed to IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS media converter is designed for use with singlemode fiber optic cable with SC-type connectors. The MC112CS media converter supports the Long Wave Laser (LX) specification at maximum packet forwarding speed. It uses a wavelength of 1 310 nm for sending data and 1 550 nm for receiving data. This means that the other end-device must use 1,550 nm for sending data and 1,310 nm for receiving data in order to interoperate with the MC112CS. The TP-LINK MC111CS media converter is an example of a unit that works with the MC112CS module. Other features of this module include the ability to be used as a standalone device (no chassis required), automatic MDI/MDI-X detection for the TX port, automatic duplex mode negotiation on the TX port, and front panel status LEDs. The MC112CS supports data transmission over a single mode fiber optic cable over distances up to 20 km. Technical parameters Physical characteristics Operating temperature [°C]: 0 to 40 Depth [mm]: 95 Width [mm]: 73 Height [mm]: 27 Connectors and interfaces Connectors: (1) SC LAN speeds: (1) 10/100Mbps Power Max. power consumption [W]: 2.4 Power Type: DC connector Power supply via connector/socket: 9V / 0.6A Optics For cable type: Single Mode Transmission Speed: 100 Mbps Wavelength - Tx/Rx [nm]: 1310 / 1550 Range [km]: 20
