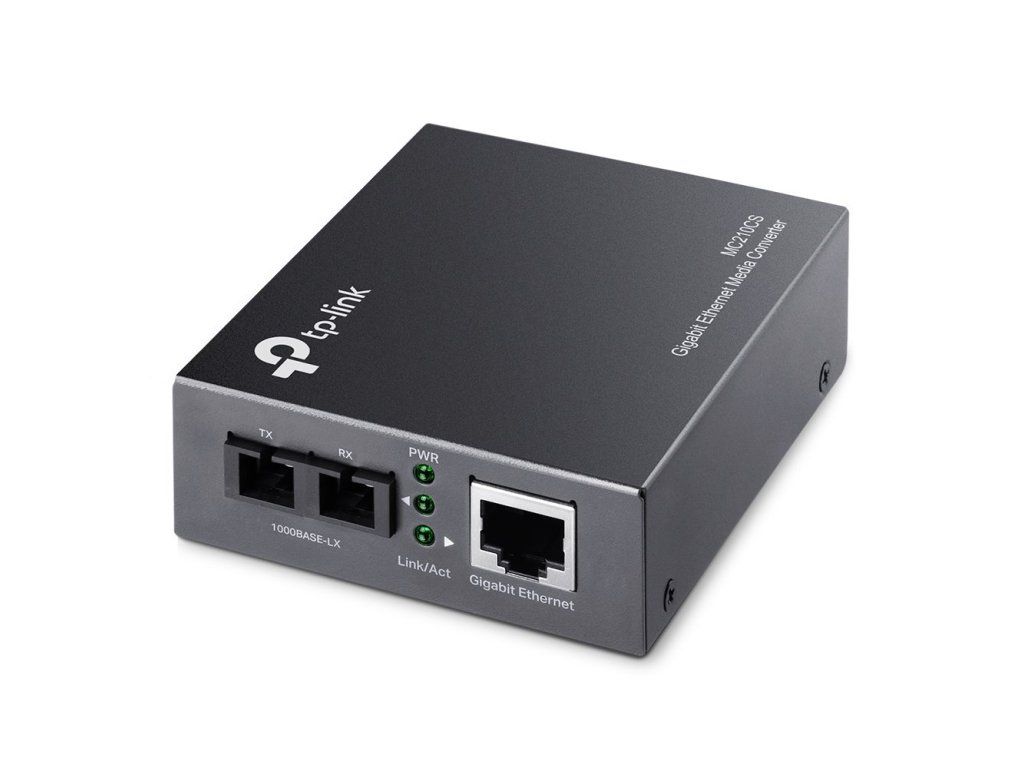

TP-Link MC210CS Transceiver 10/100/1000TX/1000FX SM, SC, 20 km

Product detailed description

The MC210CS is a media converter designed to convert media from 1000BASE-LX/LH optical line to 10/100/1000BASE-T metallic line and vice versa. Designed to IEEE802.3ab 10/100/1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS media converter is intended for use with single-mode fiber optic cable with SC-type connectors. The MC210CS media converter supports the Long Wave Laser (LX) specification at maximum packet forwarding speed. It uses a wavelength of 1 310 nm for both receiving and sending data. Other features of this module include the ability to be used as a standalone device (no chassis required) or with a TP-LINK 19' chassis, automatic MDI/MDI-X detection for the TX port, and front panel status LEDs. The MC210CS module supports data transmission over a single mode fiber optic cable over distances up to 20 km. - It supports 1,000 Mbit/s in full duplex mode for FX and 10/100/1000 Mbit/s for TX - Complies with IEEE 802.3ab and IEEE 802.3z standards - Allows automatic configuration of forced/automatic transmission mode for FX port - Extends optical line range up to 20 km Technical parameters Optics For cable type: Single Mode Transmission Speed: 1 Gbps Wavelength - Tx/Rx [nm]: 1310 Range [km]: 20 Connectors and interfaces Optical connectors: (2) SC LAN speed: (1) 10/100/1000Mbps Power Power supply type: DC connector Max. power consumption [W]: 1.8 Power supply via connector/socket: 9V / 0.6A Physical characteristics Operating temperature [°C]: 0 to 40 Width [mm]: 73 Height [mm]: 27 Depth [mm]: 95
