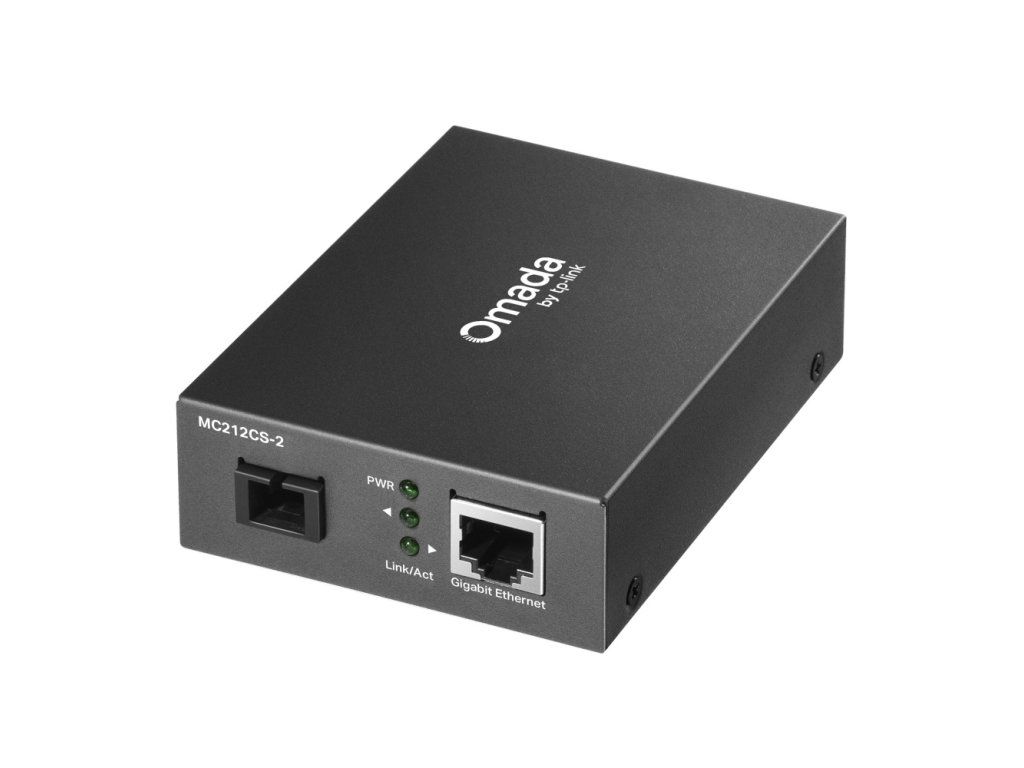

TP-Link MC212CS-2 Omada Gigabit WDM Media Converter

Product detailed description

MC212CS-2 is an optical-metallic WDM converter from RJ45 to optical SC connector. Its maximum throughput is 1000Mbps FD, which is matched by the Ethernet port that can communicate with your device 10/100/1000Mbps. The converter can be used over a distance of 20km with a single-mode (9/125um) optical fiber terminated with a single SC connector. The wavelength is 1310/1550nm (Tx/Rx) and for proper functionality you need to have preferably the MC211CS-2 model on the opposite side, which has opposite Tx and Rx than this model. Package contents - Device - Power adapter 5V/0.6A - Installation Guide Technical parameters Optics For cable type: Single Mode Transmission Speed: 1 Gbps Wavelength - Tx/Rx [nm]: 1310 / 1550 Range [km]: 2 Connectors and interfaces Optical connectors: (1) SC LAN speed: (1) 10/100/1000Mbps Optical interface: (1) 1000Mbps Power Power supply type: DC connector Max. power consumption [W]: 1.8 Power supply via connector/socket: 9V / 0.6A Physical characteristics Operating temperature [°C]: -5 to 50 Width [mm]: 73 Height [mm]: 27 Depth [mm]: 95
