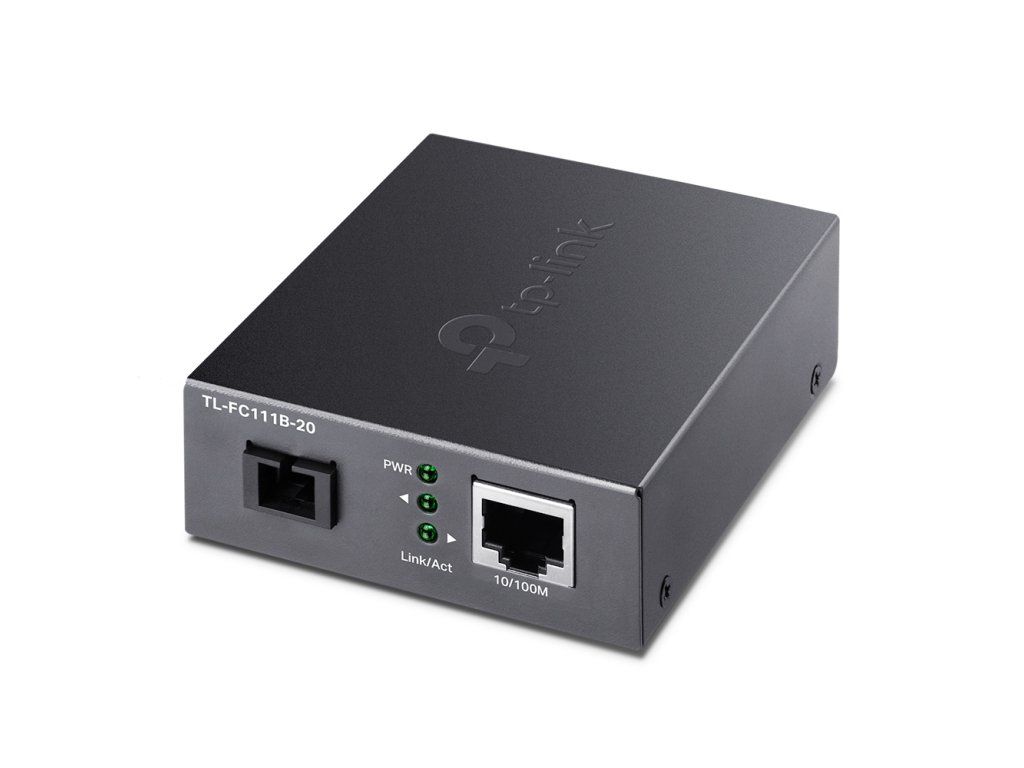

TP-Link TL-FC111B-20 - 10/100 Mbps WDM Media Converter

Product detailed description

TL-FC111B-20 is a metallic optical WDM converter from RJ45 to optical SC connector. Its maximum throughput is 100Mbps FD, which is matched by the Ethernet port that can communicate with your device 10/100Mbps. The converter can be used up to a distance of 20km with a single-mode (9/125um) optical fiber terminated with a single SC connector. The wavelength is 1310/1550nm (Tx/Rx) and for proper functionality you need to have preferably the TL-FC111A-20 model on the opposite side, which has opposite Tx and Rx than this model. Package contents Converter Power adapter 5V/0.6A Technical parameters Physical characteristics Operating temperature [°C]: 0 to 50 Depth [mm]: 95 Width [mm]: 73 Height [mm]: 27 Connectors and interfaces Optical connectors: (1) SC LAN speeds: (1) 10/100Mbps Optical interface: (1) 100Mbps Power Power supply type: DC connector Power supply via connector/socket: 5V/0.6A Optics For cable type: Single Mode Transmission Speed: 100 Mbps Wavelength - Tx/Rx [nm]: 1310 / 1550 Range [km]: 20
