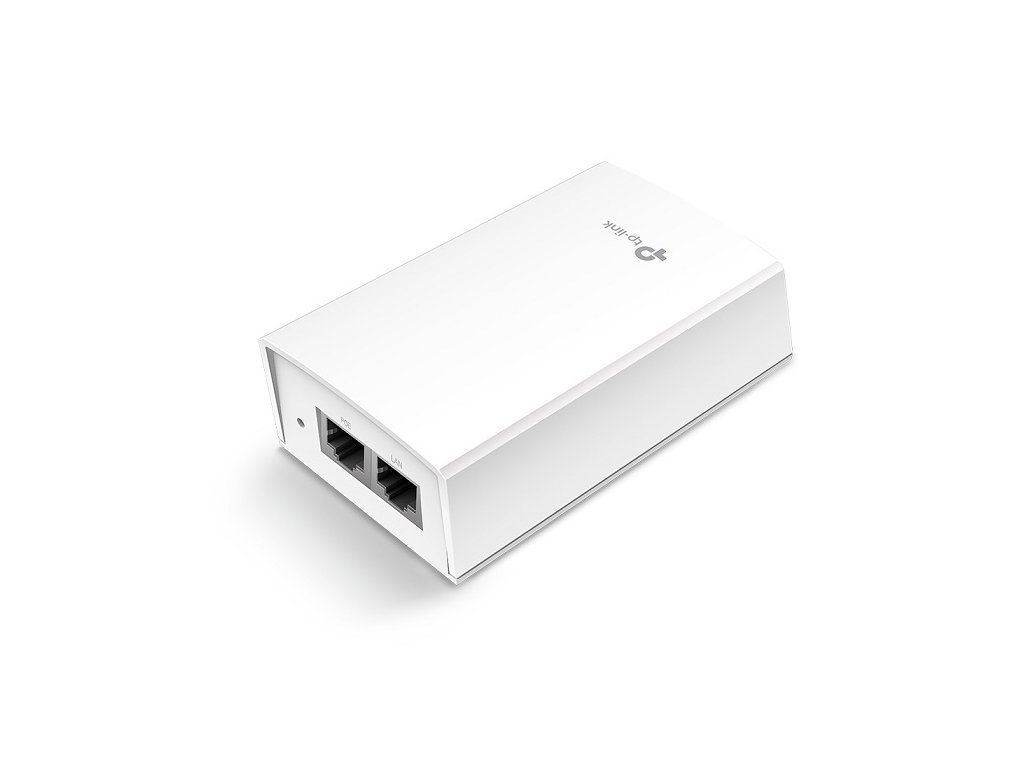

TP-Link TL-POE4824G passive PoE injector 48V 24W

Product detailed description

The TL-POE4824G is a passive 48V PoE injector with one output port supporting speeds up to 1Gbps and a maximum output power of 24W. The product is particularly suitable for TP-Link's EAP245 devices. Technical parameters Product type Physical characteristics Shielding Operating temperature [°C]: 0 to 40 Depth [mm]: 110 Width [mm]: 57 Height [mm]: 39 Connectors and interfaces Ethernet speed [Mbps]: 10/100/1000 Gigabit LAN: Yes Power LED indication: Yes Power on pins: 4.5 (+), 7.8 (-) Input voltage [V]: 230V AC Output voltage [V]: 48 Output current [A]: 0.5 Output power - 1port [W]: 24 Output power [W]: 24 Supported PoE-Out Standards: 48V Passive Number of PoE Out ports: 1
