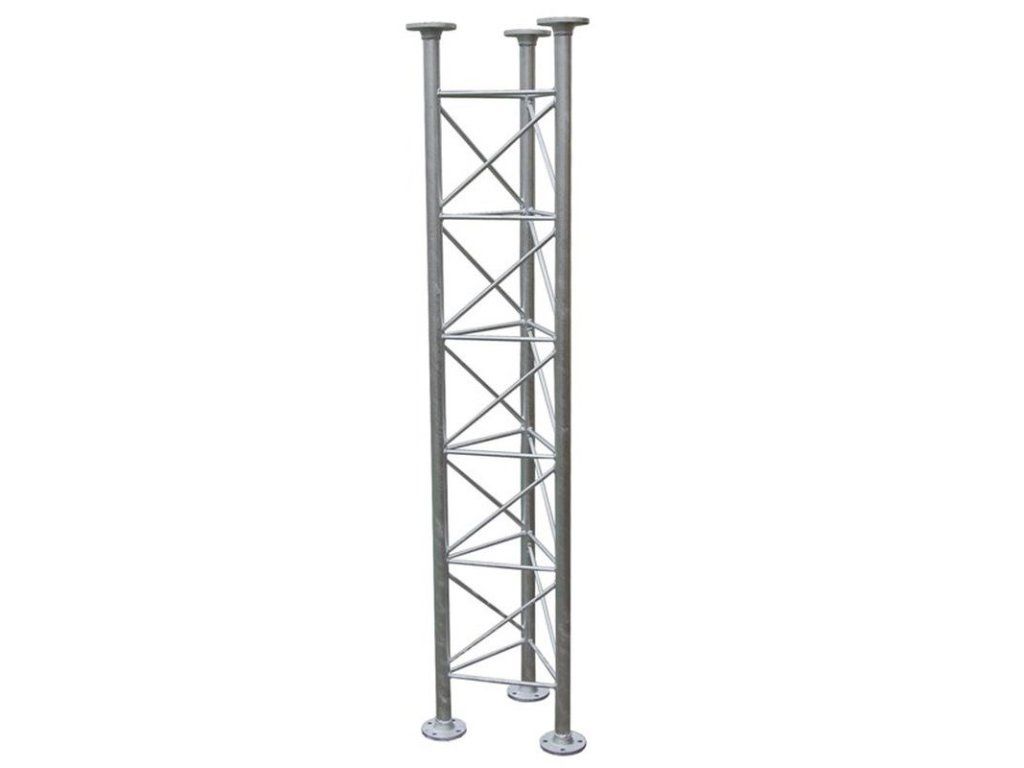

Truss mast, length 2m, pipe 42mm

Product detailed description

Truss masts are suitable for professional modular installation of transmitters. Another part can then be added in the future without much difficulty. The basis for installation is a wall bracket or base to be concreted. The individual masts are connected with 12pcs of 12mm diameter screws. The assembly should be finished with an extension which extends the whole assembly by an additional 1.5 or 2 metres at an affordable price. Both 42mm and 48mm pipe parts are compatible with each other. It is up to you which combination you choose. Height: 2m Width: 358x358x358 (mm) Standpipe diameter: 42x2 mm Floor plan: triangular Surface treatment: hot dipped zinc 80-120 micron on the outside and inside of the tubes Weight: 27 kg The hot-dip zinc coating on our truss poles and accessories is very thick. We use a technology where the inner sides of the tubes are also galvanized. Permissible loads according to the static assessment: 2m structure - vertical 300 kg, horizontal 220 kg 2+2m structure - vertical 300 kg, horizontal 110 kg 2+2+2m structure - vertical 250 kg, horizontal 40 kg - The permissible horizontal load is significantly increased by installing anchor cables. For anchoring we recommend using a 3mm stainless steel wire rope with a strength of 5 kN, i.e. a load capacity of 500 kg. Technical parameters: Physical characteristics Design: standard Surface finish: Hot-dipped zinc Height [m]: 2 Pipe diameter [mm]: 42 Wall thickness [mm]: 2 Material: Iron Weight [kg]: 27
