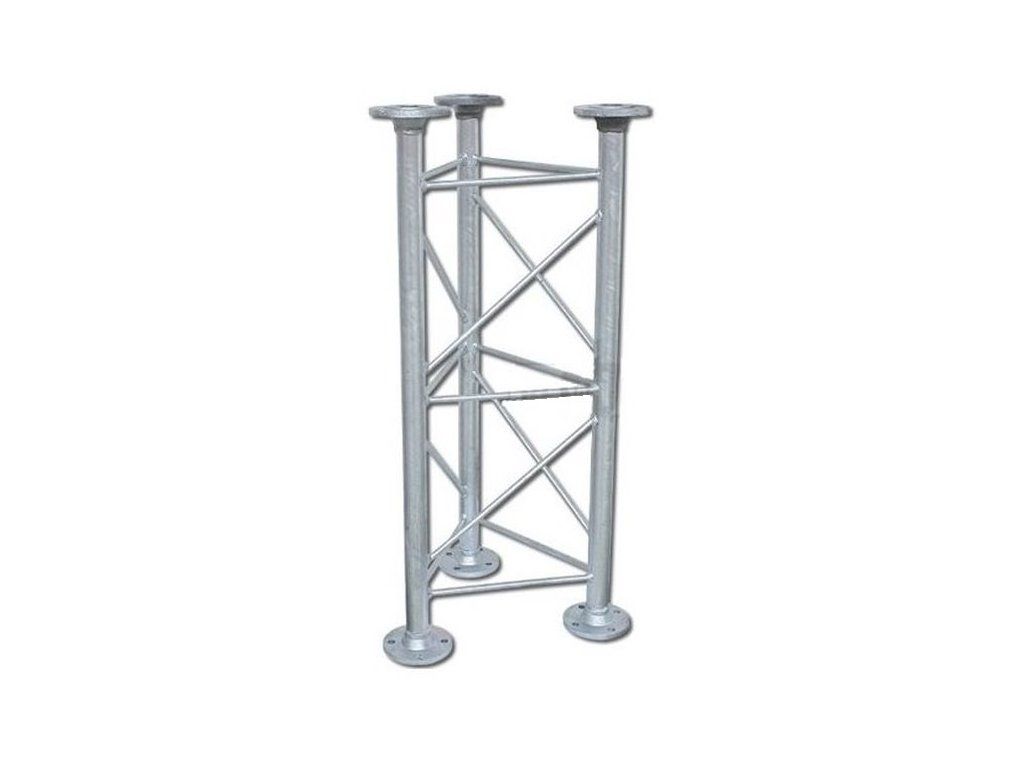

Truss pole, length 1m, pipe 42mm

Product detailed description

Truss masts are suitable for professional modular installation of transmitters. Another part can then be added in the future without much difficulty. The basis for installation is a wall bracket or base to be concreted. The individual masts are connected with 12pcs of 12mm diameter screws. The assembly should be finished with an extension which extends the whole assembly by an additional 1.5 or 2 metres at an affordable price. Both 42mm and 48mm pipe parts are compatible with each other. It is up to you which combination you choose. Notice: Truss pole, length 1 meter. Depending on the type, quality of anchoring and fasteners (strength bolts and nuts including washers), it is possible to mount multiple trusses on top of each other. Attention - there is an individual statics for each building - according to the subsoil, the number and weight of the antennas to be suspended, according to the weather conditions! Height: 1m Width: 358x358x358 (mm) Stand diameter: 42x2 mm Floor plan: triangle Surface treatment: hot dipped zinc 80-120 microns on the outside and inside of the tubes Weight: 18,5kg The hot dip zinc coating on our truss poles and accessories is very thick. We use a technology where the inside of the tubes are galvanized as well.
