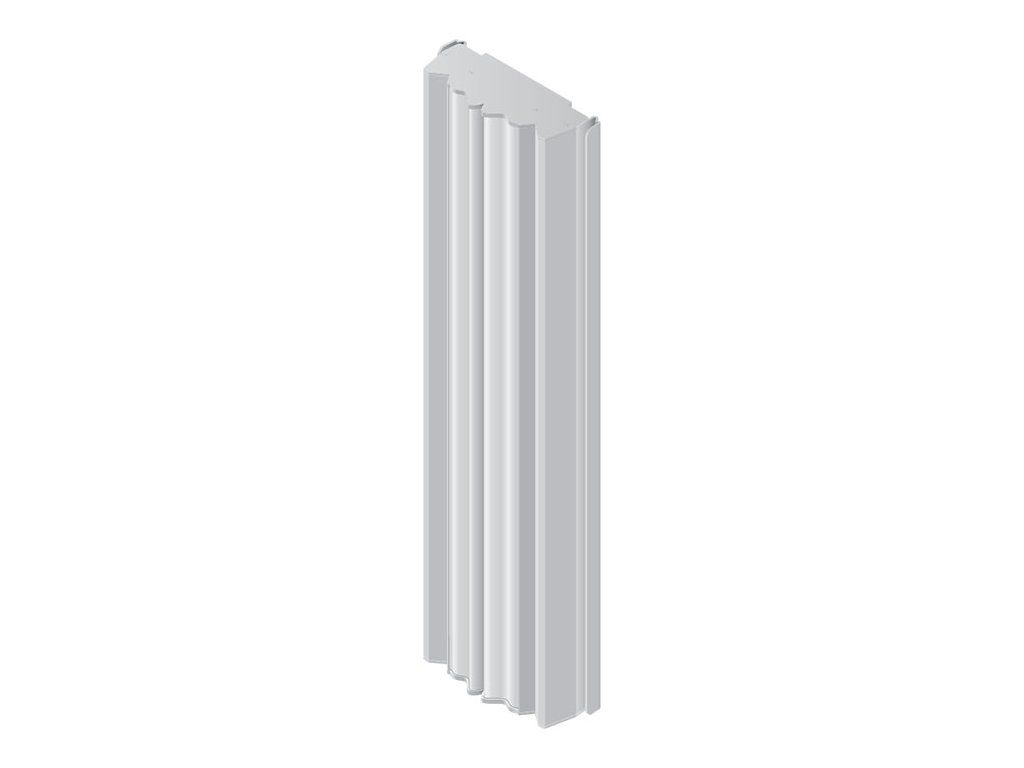

Ubiquiti sector antenna AirMax AC 22dBi 5GHz, 45°

Product detailed description

The AirMAX ac 2x2 MIMO sector antenna AM-5AC22-45 features 22dBi antenna gain, enhanced interference immunity, elimination of side lobes and a narrow 45° radiation angle. All of this results in an improved SNR (signal-to-noise ratio) parameter that will help in establishing higher modulation rates and greater throughput to connected clients. The main advantage of this antenna is the partial elimination of side lobes. The graphs below compare the AC model (left) with a normal sector antenna(right). the airMAX® ac antenna is designed for outdoor use with a very robust mechanical design. Built-in Rocket kit Thanks to the built-in rocket kit mounting system, any Rocket unit can be directly mounted on this antenna without the need to install additional accessories. Simply snap the Rocket unit into place and you're done. Package contents: - Antenna - Cover for the unit - (2) RSMA male - RSMA male pigtail - Bracket + screws
