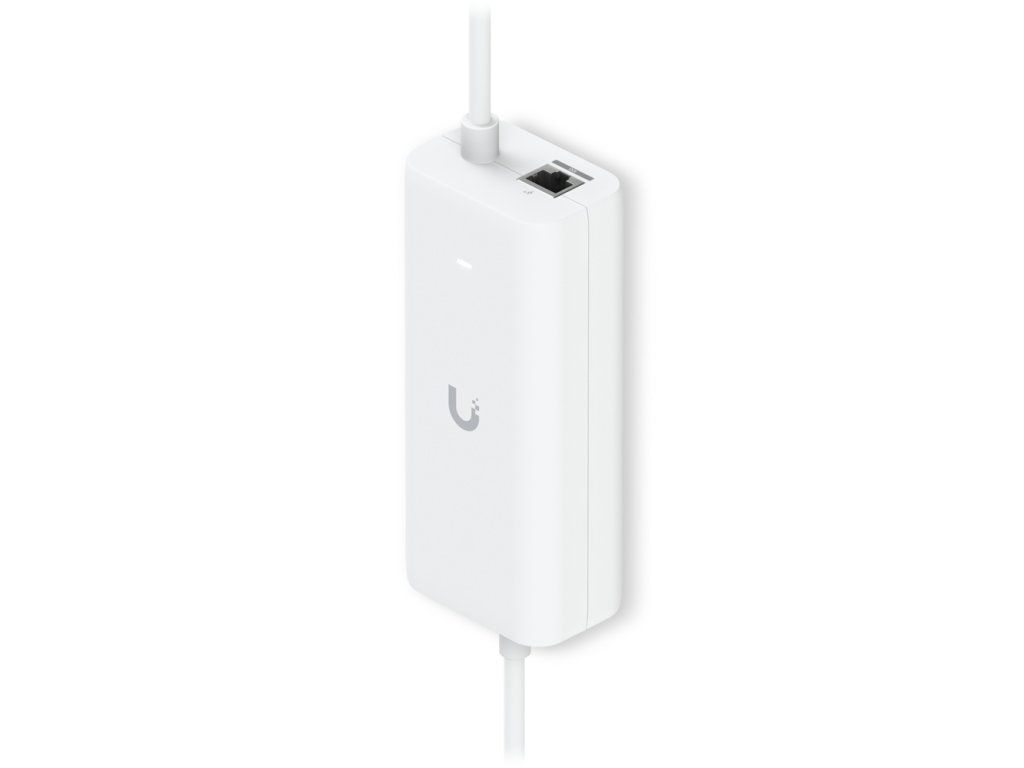

Ubiquiti UACC-PoE+-USBC, network adapter with USB-C and integrated PoE

Product detailed description

Network adapter with USB-C 5V/5A and integrated PoE 48V/0.65A. PoE power is routed through all pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-). The adapter supports LAN speeds up to 10Gb. The USB-C/Ethernet cable is 150cm long, the network cable is 180cm long. With the adapter, you can connect your USB-C powered home router and antenna or LTE for internet connection using one socket. Compatible with: UCG-Ultra UCG-Max UXG-Lite UXG-Max UX Technical parameters Connectors and interfaces Ethernet speed [Mbps]:10/100/1000/2500/5000/10000 Gigabit LAN:Yes Power supply Input voltage [V]:230V AC Power supply on pins:1,2,4,5 (+), 3,6,7,8 (-) Number of PoE Out ports:1 Output Voltage [V]:48 Output current [A]:0.65 Physical characteristics LED indication:Yes Operating temperature [°C]:0 to 40 Width [mm]:62 Height [mm]:146 Depth [mm]:42
