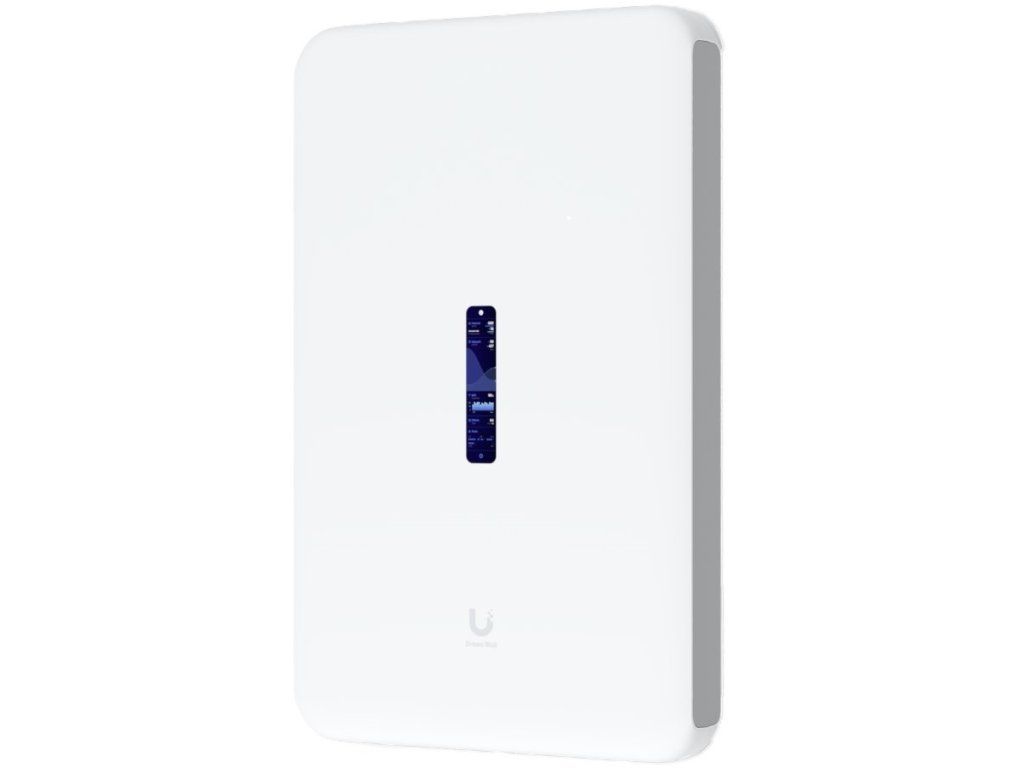

Ubiquiti UDW - UniFi Dream Wall

Product detailed description

The Dream Wall is the next in the UniFi All-in-one series. It houses a firewall, Wi-Fi 6 access point, NVR and PoE switch. The unit provides a wide range of networking options. It offers the option to connect through a 10Gbps SFP+ port or a 2.5Gbps Ethernet port. It then offers a 10Gbps SFP+ port for connecting other devices on the LAN along with 17 1Gbps Ethernet ports, 12 of which have PoE capability (4x POE++, 4x POE+ and 4x POE). The unit is factory fitted with a single 550W hot-swap power supply and a second redundancy position is available. The maximum power consumption of the device is 532W including connected powered devices. The radio part supports the latest WiFi 6 (802.11ax) standard, is backward compatible with older standards and features MIMO 2x2 (2.4 GHz) and 4x4 (5 GHz) technology with a maximum modulation rate of 300 + 2400 Mbps. All important device and network information can be accessed immediately thanks to the integrated 4.7" display. A pre-installed 512GB microSD card is used to store camera footage, and the device also has its own 128GB SSD. Supported UniFi services UniFi Network Controller UniFi Protect UniFi Access UniFi Talk UniFi Connect Benefits of UniFi solutions Zero Handoff Roaming - failover between APs Wireless uplink (useful where a data cable cannot reach) Up to 4 SSIDs Detailed traffic statistics Guest network Load balance - maintain a steady load / switch clients Rate limiting for each SSID Package Contents - Device with pre-installed 512 GB microSD card - Screws and dowels - Drilling template - Wall mount - Power cable
