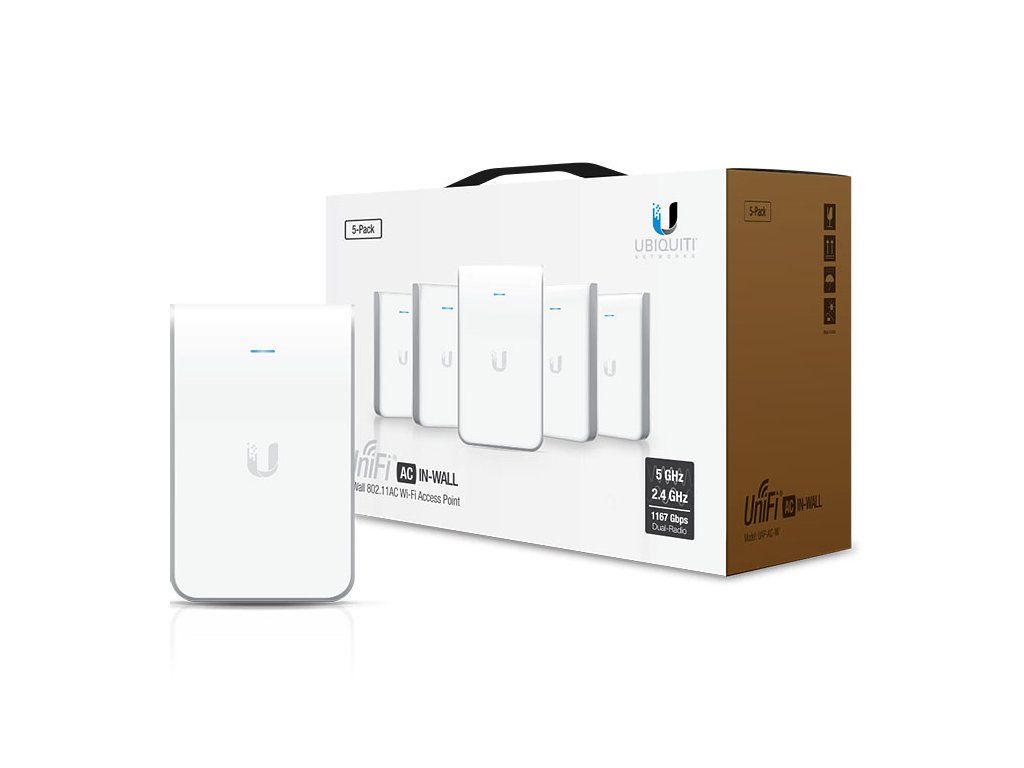

Ubiquiti UniFi AP, AC, In-Wall, 5-Pack

Product detailed description

The Ubiquiti UniFi AC In-Wall is a very small and discreet 802.11ac UAP device for flush mounting. It is a 2x2 MIMO 2.4GHz and 2x2 MIMO 5GHz Acess Point with up to 1167 Mbps data rates and support for 802.11a/b/g/n/ac standards. The UAP-AC-IW is designed for offices and hotels. The antenna system includes 1 built-in antenna with a gain of 1dBi for the 2.4GHz band and 2dBi for the 5GHz band with a range of up to 25 meters. It also fully supports roaming when forwarding associated clients between APs. Furthermore, in terms of interfaces, the device includes 3x 10/100/1000Mbps LAN with PoE IN support on the rear port and PoE Out on the front port, always via 802.3af PoE. Power over PoE The UAP-AC-IW is designed to be as easy to use and install as possible, offering the highest level of features despite its low price. The UAP-AC-IW has a total of 3 Ethernet ports. The first port on the back is for powering the UAP-AC-IW via PoE using the 802.3af/at standard. You can use any UniFi switch or PoE adapter with 802.3af/at power support to power the UAP-AC-IW as well as a passive 48V adapter from UBNT. There are 2 more ports on the front - one for data only and the other with 802.3af PoE power support, e.g. for a VoIP phone. All Ethernet ports have a 10/100/1000Mbps transfer rate. Easy installation A great advantage is the very fast installation using 2 screws on top of each other with a pitch of 83mm, primarily designed for American plastic boxes with dimensions (W x H x D): 57.2 x 95.3 x 85.7 mm. For the device you need to download from the official website the original software called UniFi controller, which allows you to control the entire network. The undeniable advantage of the UniFi controller is that it is completely free without any restrictions! This central management allows you to upload maps and set basic parameters such as SSID, guest account, homepage, traffic statistics as well as the list and status of associated clients quickly and easily. Benefits of UniFi solutions Zero Handoff Roaming - failover between APs Wireless uplink (useful where data cable cannot reach) Up to 4 SSIDs Detailed traffic statistics Guest network Load balance - maintain a steady load / switch clients Rate limiting for each SSID Package Contents 5x Devices 5x Screws
