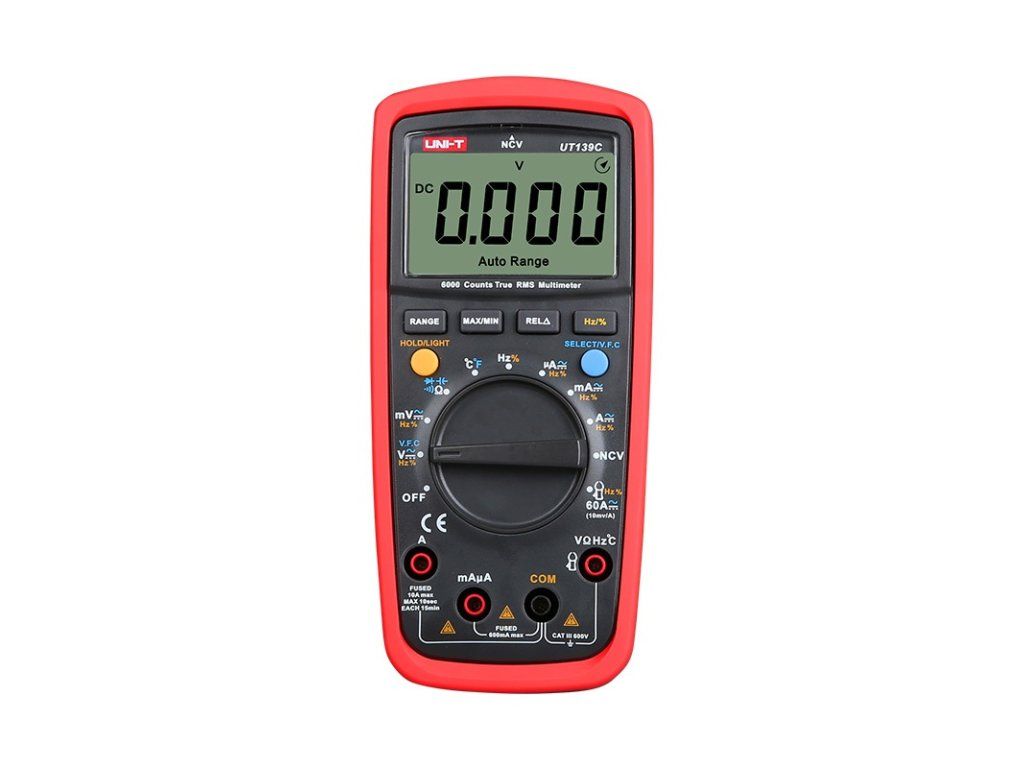

UNI-T UT139C multimeter

Product detailed description

Modern TRMS multimeter of extremely durable design with exceptional price/performance ratio. DC and AC voltages and currents, resistance, capacitance, frequency, AC, temperature + non-contact voltage detection, ringing, backlit display. TECHNICAL SPECIFICATIONS: DC voltage: 600mV / 6V / 60V / 600V - Accuracy: +/- (0.5%+2) AC Voltage: 6V / 60V / 600V - Accuracy: +/- (0.8%+3) DC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A - Accuracy: +/- (0.8%+2) AC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A - Accuracy: +/- (1%+3) Resistance: 600Ohm / 6kOhm / 60kOhm / 600kOhm / 6MOhm / 60MOhm - Accuracy: +/- (0.8%+2) Capacitance: 9.999nF / 99.99nF / 999.9nF / 99.99µF / 999.9µF / 9.999mF / 99.99mF - Accuracy: +- (4%+5) Frequency: 10Hz - 10MHz - Accuracy: +- (0.1%+4) Grade: 0.1%~99.9% Temperature: -40°C~1000°C (with thermocouple supplied up to 200°C) - Accuracy: +- (1%+3) Automatic range adjustment True RMS Bandwidth 45Hz-1kHz Diode test Non-contact voltage detection Automatic shutdown Leakage (conductivity test) Low battery indication Data hold Relative mode (zeroing) Display backlight Input protection 600Vrms Input impedance for DC voltage 1GOhm Power supply: 2xAA 1.5V Dimensions: 180mm x 87mm x 47mm Weight: 370g LCD Dimensions: 58mm x 36mm PACKAGING CONTENTS: Multimeter 2x 1.5V AA batteries Measuring tips Temperature probe (up to 200°C) Operating Instructions
