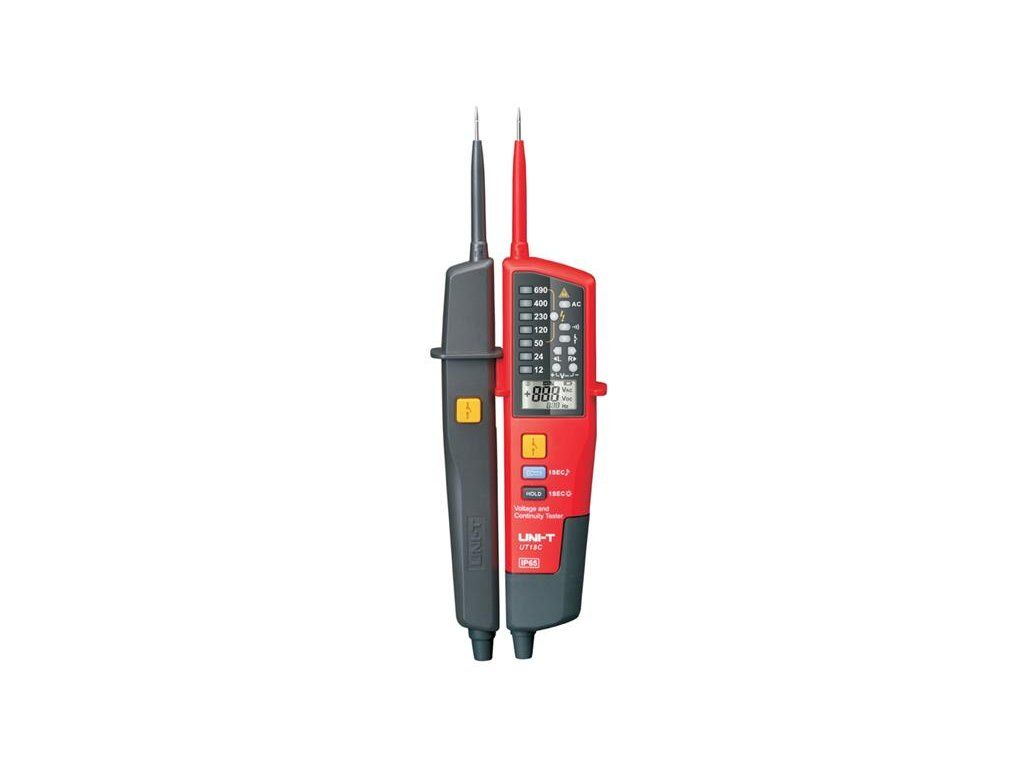

UNI-T UT18C tester

Product detailed description

UNI-T UT18C tester
We offer a 3-year warranty on this product.

UT18C tester

The UT18 series tester is designed for testing AC/DC voltage, three-phase voltage, phase sequence, continuity and more. This series is rated CAT IV 600V and meets the IP65 standard. Unlike the UT18D, the UT18C tester has a non-powered measurement function and it ranges from 100 - 690V. These voltage testers are the perfect tool for electricians to quickly measure voltage levels in all environments.

* LCD display + LEDs
* test of current protectors
* extremely durable design
* dustproof, splashproof (IP65)
* lED voltage indication
* integrated LED flashlight
* phase rotation test
* prozváněčka
* polarity detection

SPECIFICATIONS
Voltage
12V from 8V±1V
24V from 18V±2V
50V from 38V±4V
120V from 94V±8V
230V from 180V±14V
400V from 325V±15V
690V from 562V±24V
Phase rotation test 100V~690V, 50Hz~60Hz
Conductivity test
Test of 230V (50-400Hz) current protectors
Polarity detection
Self-test
No Power test 100V~690V

FEATURES
voltage indication - LED diodes
IP65
automatic range adjustment
integrated led flashlight
low battery indication
overvoltage 713V~788V
silent mode
LCD display (Voltage) 6V-690V ±(1.5%+5)
LCD display (frequency) 40Hz-400Hz ±(3%+5)

GENERAL CHARACTERISTICS
Power supply 2x1,5V battery R03
Weight 280g
LCD dimensions 31x20mm
Dimensions 272x85x31mm
Accessories: batteries, instructions
