UNI-T UT18D tester

Product detailed description

UNI-T UT18D tester
We offer a 3-year warranty on this product.

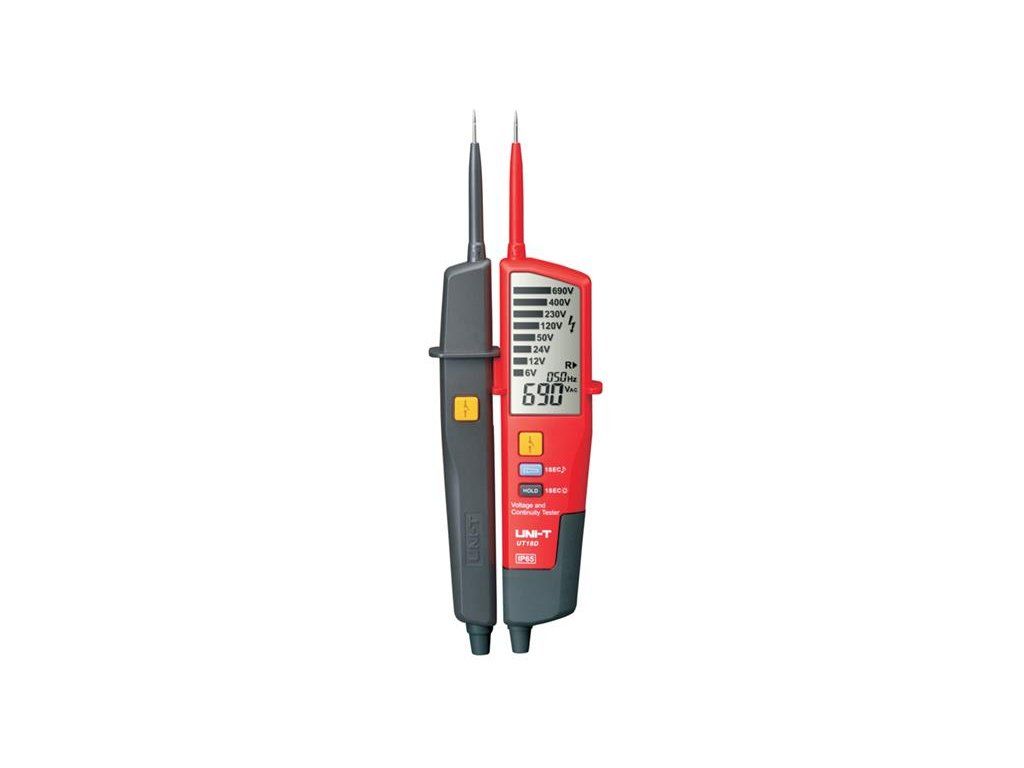

UT18D tester. The UT18D series tester is designed to test AC/DC voltage, three-phase voltage, phase sequence, continuity and more. This series is rated to CAT IV 600V and meets the IP65 standard. Unlike the UT18C, the UT18D tester has a backlit LCD display. These voltage testers are the perfect tool for electricians to quickly measure voltage levels in all environments. It is equipped with several useful features for voltage identification. It has an automatic mode that detects AC or DC voltage and indicates the presence of voltage with audible and visual alerts.


Product parameters:

- huge LCD display
- test of current protectors
- extremely durable design
- dustproof, jet water resistant (IP65)
- integrated LED luminaire
- phase rotation test
- roll Call
- polarity detection


Technical parameters:

- voltage
6V from 5V±1V
12V from 8V±1V
24V from 18V±2V
50V from 38V±4V
120V from 94V±8V
230V from 180V±14V
400V from 325V±15V
690V from 562V±24V

- phase rotation test 100V~690V, 50Hz~60Hz
- conductivity test
- 230V (50-400Hz) current protector test
- polarity detection
- self-test
- voltage indication - LEDs
- IP65
- automatic range adjustment
- integrated ice lamp
- low battery indication
- overvoltage 713V~788V
- silent mode
- LCD display (Voltage) 6V-690V ±(1.5%+5)
- LCD display (frequency) 40Hz-400Hz ±(3%+5)
- display backlight
- power supply 2x1,5V battery R03
- weight 280g
- lCD dimensions 73.5x35.5mm
- dimensions 272x85x31mm
- accessories: batteries, instructions
