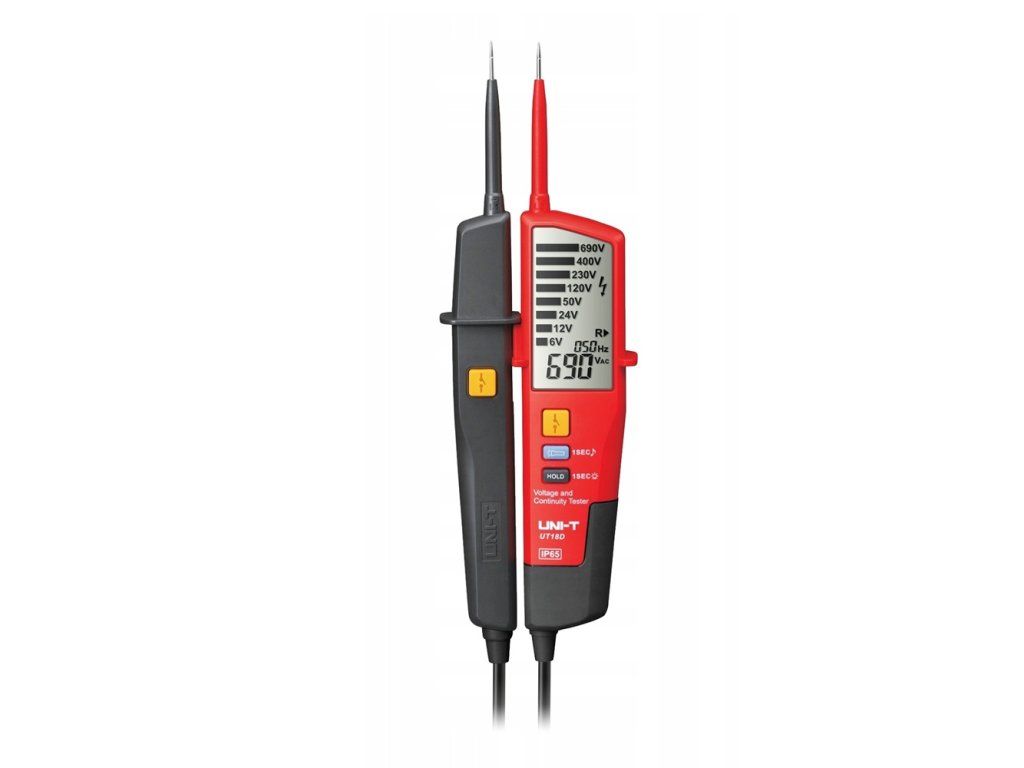

UNI-T UT18D Voltage Tester

Product detailed description

This product comes with a 3-year warranty. UT18D tester. The UT18D series tester is designed for testing AC/DC voltage, three phase voltage, phase sequence, continuity and more. This series is rated CAT IV 600V and meets the IP65 standard. Unlike the UT18C, the UT18D tester has a backlit LCD display. These voltage testers are the perfect tool for electricians to quickly measure voltage levels in all environments. It is equipped with several useful features for voltage identification. It has an automatic mode that detects AC or DC voltage and indicates the presence of voltage with audible and visual alerts. Product parameters: - huge LCD display - current protector test - extremely durable design - dustproof, splashproof (IP65) - integrated LED flashlight - phase rotation test - ballast - polarity detection Technical parameters: - voltage 6V from 5V±1V 12V from 8V±1V 24V from 18V±2V 50V from 38V±4V 120V from 94V±8V 230V from 180V±14V 400V from 325V±15V 690V from 562V±24V - phase rotation test 100V~690V, 50Hz~60Hz - conductivity test - 230V (50-400Hz) current protector test - polarity detection - self-test - voltage indication - LEDs - IP65 - automatic range adjustment - integrated led flashlight - low battery indication - overvoltage 713V~788V - silent mode - LCD display (Voltage) 6V-690V ±(1.5%+5) - LCD display (Frequency) 40Hz-400Hz ±(3%+5) - display backlight - power supply 2x1.5V battery R03 - weight 280g - lCD dimensions 73.5x35.5mm - dimensions 272x85x31mm - accessories: battery, manual
