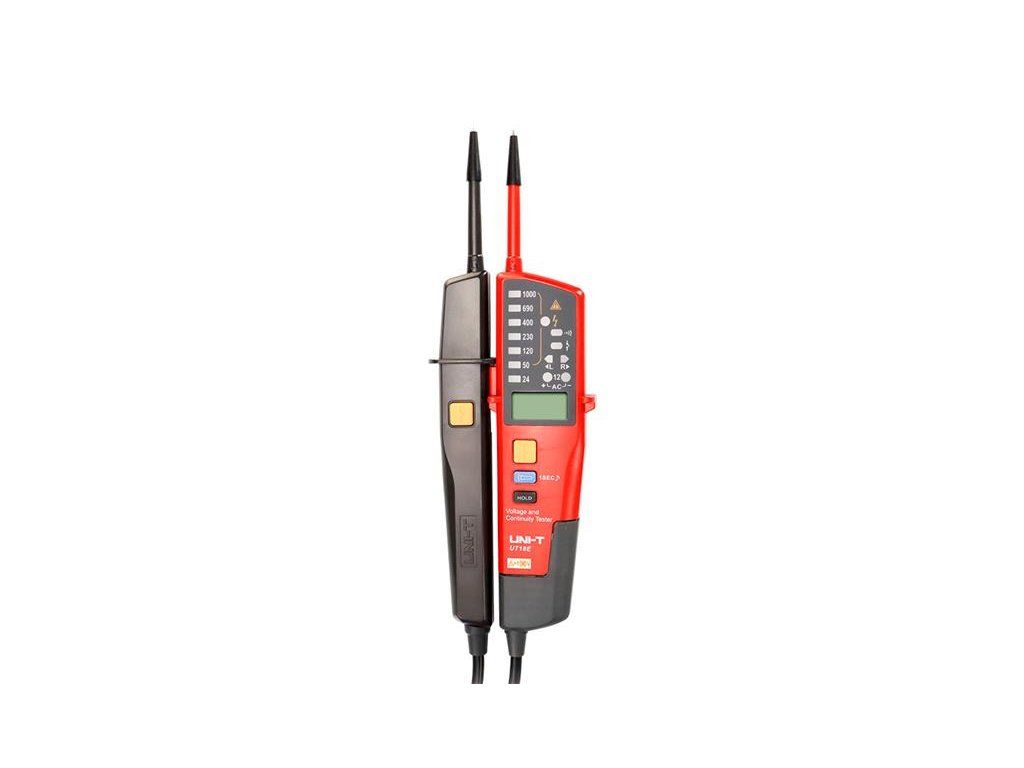

UNI-T UT18E tester

Product detailed description

We offer a 3-year warranty on this product.

UNI-T UT18E tester. The UT18 series tester is designed to test AC/DC voltage (up to 1000V), three-phase voltage, phase sequence, continuity and more. This series is rated CAT IV 600V and meets the IP65 ingress protection standard. The voltage tester is designed to make the job easier for electricians, technicians and other professionals working with electricity in all environments.
It is equipped with several useful functions for voltage identification. It has an automatic mode that detects AC or DC voltage and indicates the presence of voltage with an audible and visual warning.


Product parameters:

- 8 voltage levels: 12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V (AC/DC)
- phase sequence test
- automatic polarity test
- rCD function - test of current protectors
- automatic shutdown
- frequency measurement
- low impedance measurement
- LED+LCD display simultaneously
- audible alarm
- integrated LED luminaire
- CAT III 1000V / CAT IV 600V


Technical parameters:

- voltage (AC/DC)
6V ±(1,5% + 1)
12V ±(1,5% + 2)
24V ±(1,5% + 2)
50V ±(1,5% + 3)
120V ±(1,5% + 4)
230V ±(1,5% + 5)
400V ±(1,5% + 5)
690V ±(1,5% + 5)
1000V ±(1,5% + 5)

- phase rotation test 100V AC~400V AC, 50Hz~60Hz
- conductivity test
- sound and LED light signalling
- 230V (50-400Hz) current protector test
- polarity detection
- automatic range: full range
- overvoltage protection 1100 V
- auto standby : standby current＜10 μA
- backlight: full range
- low battery indication: approx. 2.4 V
- LCD display (voltage): 6V~1000V
- LCD display (frequency): 40Hz~400Hz ±(3%+5)
- iP65 protection
- CAT III 1000V; CAT IV 600V

- product colour: red, black
- power supply 2 x AAA 1.5 V battery LR03
- product weight (including batteries) 277g
- product dimension: 272 x 85 x 31 mm
- standard quantity in carton: 20 pcs
- standard carton: size 415 x 380 x 365 mm
