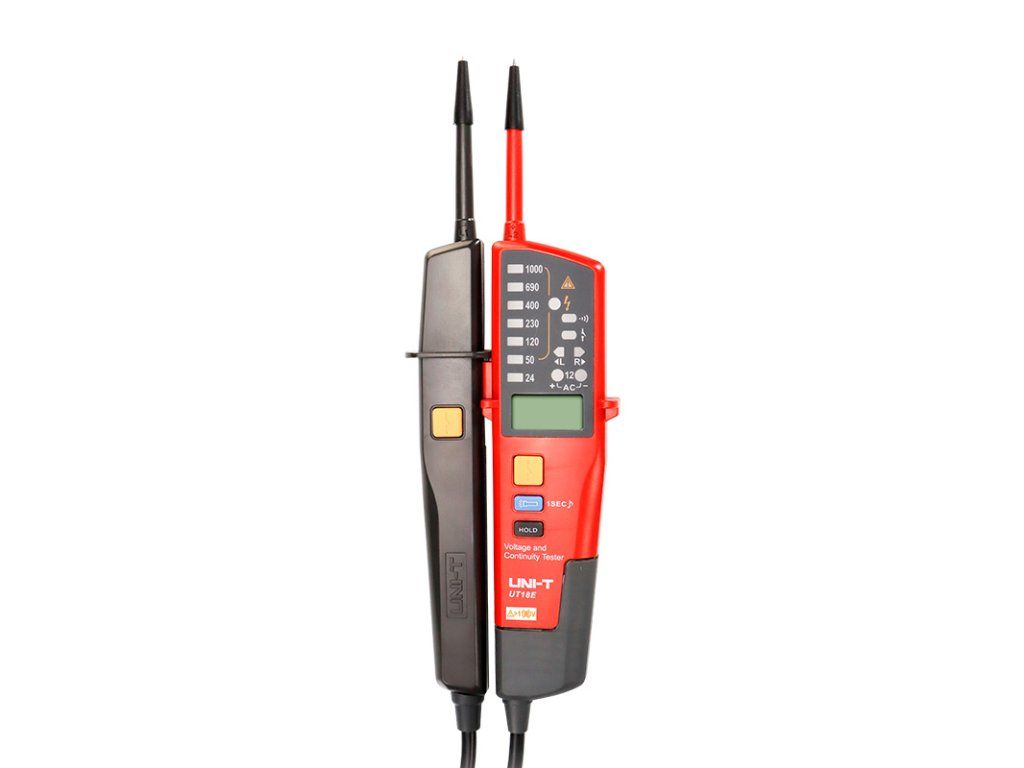

UNI-T UT18E Voltage Tester

Product detailed description

This product comes with a 3-year warranty. UNI-T UT18E tester. The UT18 series tester is designed to test AC/DC voltage (up to 1000V), three phase voltage, phase sequence, continuity and more. This series is rated CAT IV 600V and meets the IP65 protection standard. The voltage tester is designed to make the job easier for electricians, technicians and other professionals working with electricity in all environments. It is equipped with several useful features for voltage identification. It has an automatic mode that detects AC or DC voltage and indicates the presence of voltage with audible and visual alerts. Product parameters: - 8 voltage levels: 12V, 24V, 50V, 120V, 230V, 400V, 690V, 1000V (AC/DC) - phase sequence test - automatic polarity test - rCD function - current protector test - automatic shutdown - frequency measurement - low impedance measurement - LED+LCD display simultaneously - audible alarm - integrated LED flashlight - CAT III 1000V / CAT IV 600V Technical parameters: - voltage (AC/DC) 6V ±(1,5% + 1) 12V ±(1,5% + 2) 24V ±(1,5% + 2) 50V ±(1,5% + 3) 120V ±(1,5% + 4) 230V ±(1,5% + 5) 400V ±(1,5% + 5) 690V ±(1,5% + 5) 1000V ±(1,5% + 5) - phase rotation test 100V AC~400V AC, 50Hz~60Hz - conductivity test - audio and LED light indication - 230V (50-400Hz) current protector test - polarity detection - automatic range: full range - 1100V overvoltage protection - auto standby : standby current<10 µA - backlight: full range - low battery indication: approx. 2.4 V - LCD display (voltage): 6V~1000V - LCD display (frequency): 40Hz~400Hz ±(3%+5) - iP65 protection - CAT III 1000V; CAT IV 600V - product color: red, black - power supply 2 x AAA 1.5V batteries LR03 - product weight (including batteries) 277g - product dimensions: 272 x 85 x 31 mm - standard carton: size 415 x 380 x 365 mm
