UNI-T UT22B-EU tester

Product detailed description

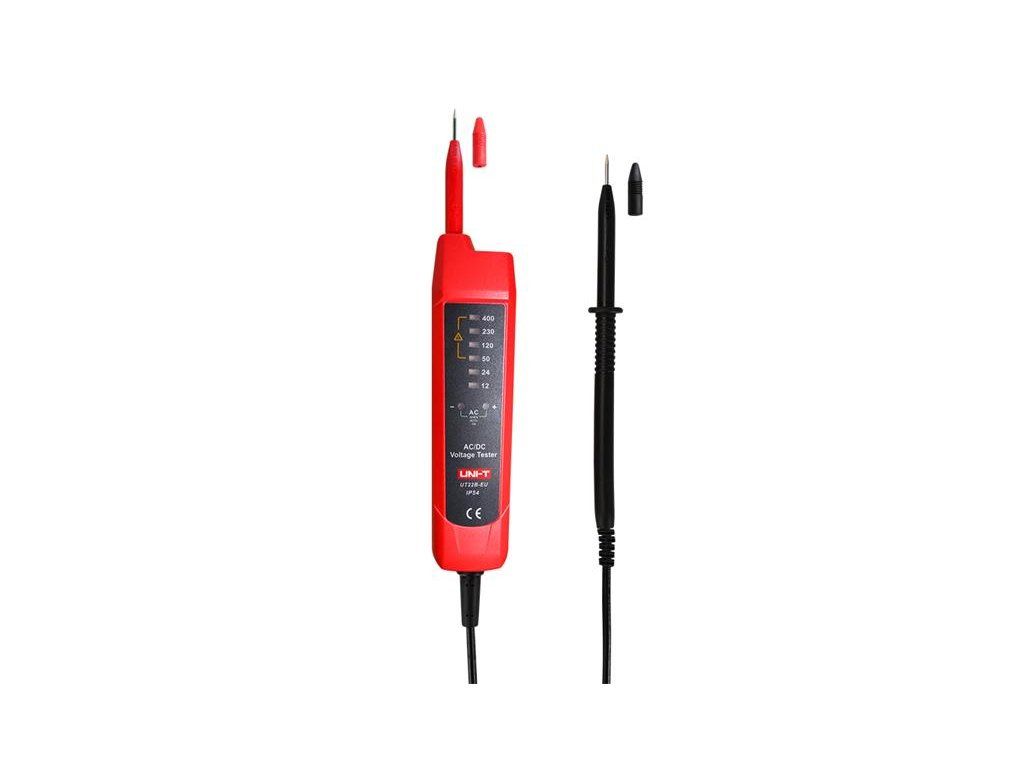

UNI-T UT22B-EU tester
We offer a 3-year warranty on this product.

The UT22B-EU is a simple voltage tester for everyday, easy to use use for electricians and DIYers to measure the presence of AC/DC voltage on 230V sockets, switches and electrical appliances. This voltage tester is IP54 rated against water and dust and is designed to withstand a drop from a height of 2 metres. The great thing about this product is that it requires no battery, its power supply is provided by the voltage being tested! The UT22B can distinguish the voltage magnitude from 12V to 400V (by the number of LEDs illuminated) and automatically distinguish between DC and AC voltage (illuminating the "+" or "-" indicators or both at the same time). Accuracy of voltage level indication: the corresponding LED is usually fully illuminated at approx. 70% to 100% of the indicated range, with the exception of the 12V AC/DC range, where it is already illuminated at 50% to 100% of the voltage value. The device complies with EN61326-1: 2013, EN61326-2-2: 2013, EN61243-3: 2014.


Product Parameters :

- voltage presence tester 12V to 400V AC/DC
- dC voltage polarity resolution
- iP54 water and dust resistance
- resistance to damage when dropped from a height of 2m


Technical parameters :

aC/DC voltage level indicators:
- on the 12V range, the LED lights up in the voltage range 6V to 12V
- on the 24V range, the LED lights up in the 17 V to 24 V range
- on the 50V range, the LED lights up in the 35 V to 50 V voltage range
- on the 120V range, the LED lights up in the voltage range 84V to 120V
- on the 230V range, the LED lights up in the voltage range 161V to 230V
- on the 400V range, the LED lights up in the voltage range 280 V to 400 V

- dC polarity indicators Positive: (+) LED lit
- dC Negative polarity indicators: (-) LED lit
- aC voltage indicator: both (+/-) LEDs are lit

- internal impedance of the tester: 17 kOhm when the voltage is below 50 V AC
- frequency of measured AC voltage: 50/60 Hz
- drop test from height: 2m
- water and dust protection: IP54
- hazardous voltage indicator: illuminates when voltage >50V, flashes at 1.5Hz when voltage >400V
- delay between measurements: <5 s
- maximum time of one measurement: >600 s
- power supply: from the measured circuit
- operating temperature: -15°C to 45°C
- operating relative humidity: <85% non-condensing
- operating altitude: up to 2000 metres above sea level
- storage temperature: -20°C to 60°C
- safety rating: CAT III 400V
- product dimensions: 116 x 33 x 22 mm
- product weight: 150 g
- product colour: red and grey

Contents of the standard individual pack :
- uT22B-EU voltage tester
- instructions for use:

MANUFACTURER: UNI-TREND
www.uni-t.cz
