UNI-T UT25CL cable detector

Product detailed description

We offer a 3-year warranty on this product.

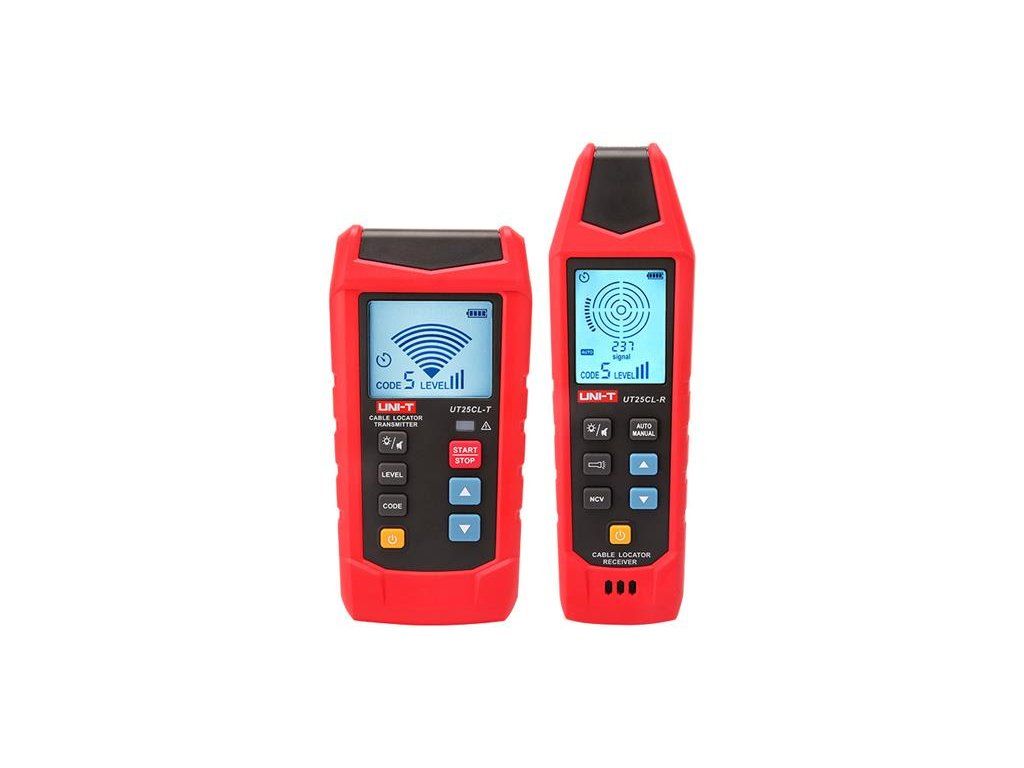

The UNI-T UT25CL cable detector is a powerful device consisting of a transmitter and a receiver. Thanks to state-of-the-art sensors, it effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs. This device detects wires, identifies breaks or short circuits, tracks underground cables, and locates fuses and related equipment. It also detects short circuits and broken circuits in underfloor heating, monitors metal water pipes and heating ducts, and supports up to 8 transmitters.

It is ideal for residential or commercial projects.
The UT25CL handheld detector can be used to detect the route of low-voltage cables buried in the ground (e.g., cables in a wall); to test and diagnose disconnections, short circuits, and other problems occurring on cables; and to determine if the cable under test is live. The transmitter can display the corresponding voltage (power cable voltage: ≥8V) and the receiver can simultaneously display the signal strength, transmitter code, transmitter power level, low battery, etc. UT25CL has many advantages including accurate measurement, easy operation, visualized display and more.
drivers, etc.


Product parameters:

- search for conductors under plaster, interruption of conductors, short circuits on conductors
- tracing of wires stored in the ground
- detection of fuses and assignment of current circuits
- detection of broken wires and short circuits in metal floor heating distribution systems
- routing of metal pipes for water and heating distribution
- tracing sockets and distribution sockets that were accidentally hidden under the plaster
- receiver sensitivity adjustment automatically or manually (3 adjustable levels, transmitter: 9 levels)
- lamp and backlight function
- automatic switch-off function
- one receiver can support up to 8 transmitters
- live wire detection: up to 480 V (AC/DC)
- lED indication and acoustic signal


Technical parameters:

Transmitter:
- output signal: 33 kHz
- voltage range: 8 V - 480 V AC/DC , 50/60Hz ( 2.5%)
- lCD display
- display backlight
- code value 0,1,2,3,4,5,6,7
- signal strength three levels: 1, 2, 3
- unipolar test: yes (live conductor test, max. voltage 480 V)
- bipolar test: yes (live conductor test, max. voltage 480V)
- eLV LED indicator
1. if the input voltage exceeds 25V, the ELV LED lights up
2. the brightness of ELV LEDs increases with increasing voltage
3. in any other case the ELV LED will be dimmed or not lit
- power supply: 6 x 1.5V AA (LR06)
- dimensions: 189 x 96 x 48mm
- weight: approx. 528g

Receiver:
- receiving signal: 33 kHz
- cable location mode: approx. 0 - 2.5 m (single pole application), approx. 0 - 0.5 m (double pole application)
- nCV voltage range 80V~1000V, 50Hz/60Hz
- voltage detection: approx. 0 - 0.4 m
- code value 0,1,2,3,4,5,6,7
- signal strength three levels: 1, 2, 3
- lCD display
- power supply: 6 x 1.5 V AAA (LR03)
- dimensions: 226 x 68 x 38mm
- weight: approx. 354g

Other:
- backlight
- manual sensitivity adjustment
- overvoltage category CAT III 480V
- iP54 protection
- certifications:CE, RoHS
