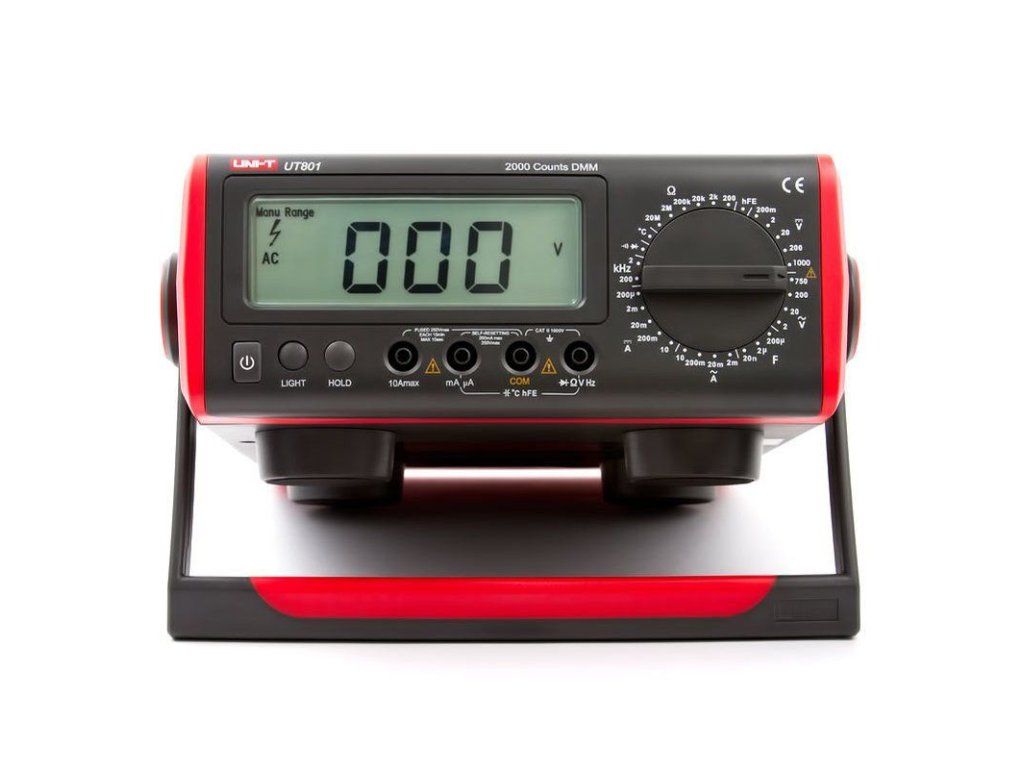

UNI-T UT801 bench multimeter

Product detailed description

UNI-T UT801 Digital Desktop Multimeter - with manual range switching - large number of functions - advantageous price TECHNICAL SPECIFICATIONS: - DC voltage: 200mV/2V/20V/200V/1000V +/- (0.5%+2) - AC voltage: 2V / 20V / 200V / 1000V +/- (0.8%+3) - DC current: 200uA / 2mA / 20mA / 200mA / 10A +/- (0.8%+2) - AC current: 2mA / 20mA / 200mA / 10A +/- (1.0%+3) - Resistance: 200 Ohm / 2kOhm / 20kOhm / 200kOhm / 2MOhm / 20MOhm +/- (0.8%+3) - Capacitance: 20nF / 2uF / 200uF +/- (4%+3) - Frequency: 2kHz / 200kHz +/- (1.5%+5) - Temperature: -40°C ~ 1000°C +/- (1.2%+3) - Transistor measurement - Sleep Mode - Diode Test - Acoustic conductivity test (ringing) - Display backlight - Low battery indication - Input impedance for DC voltage measurement: >10MOhm - Data Hold - Max. display reading: 1999 - Power: AC220V/50Hz or 6x 1.5V batteries (R14) - LCD Dimensions: 108 x 35mm - Weight: 1500g - 300 x 245 x 105mm - Standard accessories: test tips, power cord, manual, temperature probe
