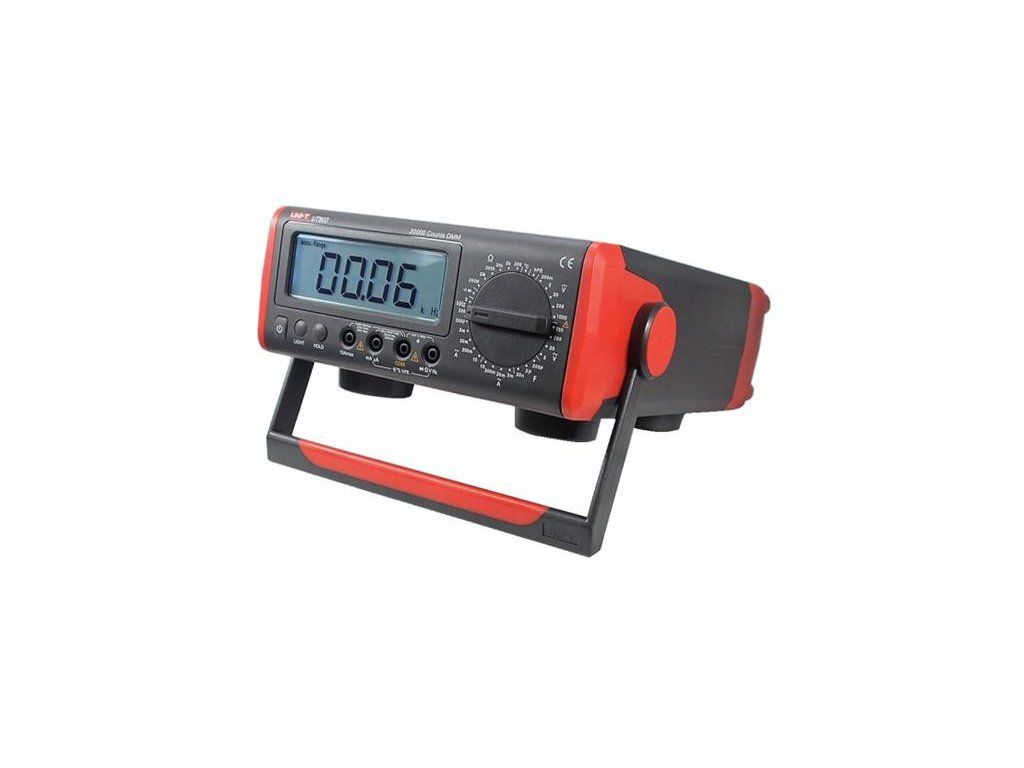

UNI-T UT802 bench multimeter

Product detailed description

We offer a 3-year warranty on this product. The UT802 desktop multimeter is a multi-purpose electronic measuring instrument. It meets the needs of measuring electrical parameters in the maintenance of electronic equipment with high accuracy and ease of operation. The advantage is the many functions and the possibility of use even out of the range of 230V supply voltage, because it also allows battery operation. The instrument has a backlit LCD display with ±19999 readable value. The instrument is manufactured to IEC61010-1 standards and complies with CAT II 1000V category.


Product Parameters :

- large backlit LCD display measuring 108 x 34.5mm, with a max. display value of 19999
- simple and clear operation by manual switching of the ranges with one circular switch
- measurement of AC/DC voltages and currents, resistances, capacitances, frequency and temperature
- measurement of semiconductor transitions of diodes and transistors
- measurement of hFE parameters of transistors
- circuit continuity testing with buzzer
- data Hold function
- power supply with 230V AC/DC9V/200mA adapter or 6 x 1,5V batteries; R14
- storage space for adapter


Technical parameters :

- dC voltage measurement on ranges: 200mV to 1000V with accuracy ±(0.1%+3)
- aC voltage measurement on ranges: 2V to 750V with accuracy ±(0.5%+20)
- dC current measurement on ranges: 200µV to 10A with accuracy ±(0.5%+20)
- dC current measurement on ranges: 2mA to 10A with accuracy ±(0.8%+40)
- resistance measurement on ranges: 200Ω to 200MΩ with accuracy ±(0.5%+10)
- capacitance measurement on ranges: 20nF to 200µF with ±(4%+10) accuracy
- frequency measurement on 2kHz and 200kHz ranges with accuracy ±(1.2%+10)
- temperature measurement in the range: -40 °C to 1000 °C with an accuracy of ±(1.2%+25)
- input impedance for DC ranges: approx. 10MΩ
- automatic polarity display: yes
- low battery warning: yes
- temperature probe included: type K for temperatures up to +230 °C
- working environment: 0°C to 40°C
- storage in the environment: -10 °C to 50 °C
- relative humidity: max. 75% in the temperature range 0°C to 30°C; max. 50% in the temperature range 30°C to 40°C
- dimensions: 300 x 245 x 105mm
- weight without accessories: 1.5kg
- weight with accessories: 1.65kg
- product colour: red and green


Contents of the individual package :

- uT802: 1 pcs
- adapter 230V AC/9V DC/200mA: 1 pc
- international power adapter reduction: 1 pcs
- battery 1,5V, R14: 6 pcs
- contact temperature probe type K: 1 pc
- measuring cables: 1 pair
- crocodile: 1 pair
- user manual: 1 pcs


Contents of wholesale packaging :

- number of pieces in standard carton: 4pcs
- dimensions of standard carton: 680 x 365 x 320mm
- weight of standard carton: 11.7 kg
